PT100

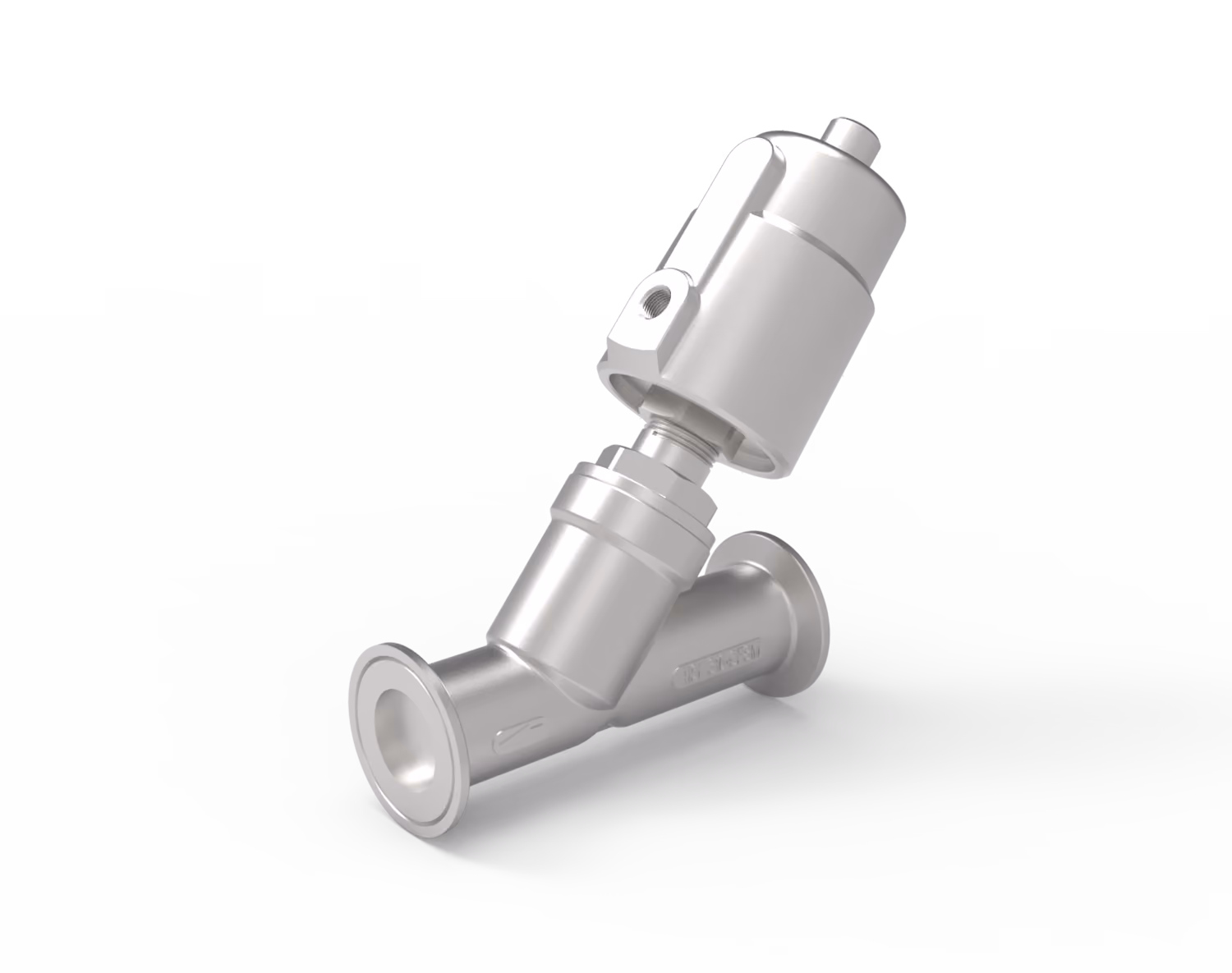

Series PT100 2 Way Normally Closed Tri-Clamp Pneumatic Angle Seat Valve Ultravalve supplies the Series PT100 2 way normally closed pneumatically operated angle seat valve for automated flow isolation in demanding industrial systems. Designed for plant engineers requiring Tri-Clamp pipework integration, the PT100 is suitable for compatible water, alcohol, oils, fuels, steam, natural gases or liquids, organic solvents, acids and lyes. Featuring an AISI 316 stainless steel body, PTFE sealing and an AISI 304 actuator, with aluminium used for 125 mm actuator versions, the PT100 supports chemical processing, food and beverage, filling machinery, industrial automation, steam, water treatment and industrial washing applications when correctly specified and installed. Dependable Tri-Clamp Automated Isolation for Process Systems Ultravalve’s Midlands based warehouse offers a wide range of Series PT100 valves from stock, subject to configuration and current availability. These valves help support maintenance projects, drinks filling machinery, automated textile printing lines, chemical processing and critical process pipework assemblies where Tri-Clamp connections are required. Normally Closed Pneumatic Operation: The PT100 is a 2 way normally closed angle seat valve, with normally open and double acting versions available on request. Tri-Clamp Integration: Features Tri-Clamp connections for compatible process pipework systems, supporting straightforward assembly and maintenance access. Inlet Under Seat Design: The inlet under seat configuration supports water hammer effect prevention in compatible process systems. Defined Pressure & Control Requirements: Supports fluid pressure up to max 16 bar, with maximum pressure dependent on DN and actuator selection. Control pressure starts from 3.5 bar according to the datasheet table, using neutral gas or air as the control fluid. Stainless Steel & Seal Construction: Manufactured with an AISI 316 stainless steel body and PTFE sealing, with a maintenance free PTFE sealing pack for process use. Media & Temperature Suitability: Suitable for compatible water, alcohol, oils, fuels, steam, natural gases or liquids, organic solvents, acids and lyes. Fluid temperature range is listed as -10°C to +180°C, with ambient temperature from -10°C to +80°C and maximum fluid viscosity of 600 cSt. Actuator, Mounting & Position Feedback: Actuator sizes include 40 mm, 50 mm, 63 mm, 90 mm and 125 mm. Pilot thread is G1/8, or G1/4 for 125 mm actuators. The datasheet states universal mounting position and includes a protected visual position indicator. Application Versatility: Designed for packaging, drinks filling machinery, textile printing, pharmacy and medical equipment, chemical industry, foaming equipment and water or sewage disposal applications, subject to media and configuration compatibility. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series PT100 normally closed Tri-Clamp pneumatic angle seat valve is available to order, with delivery options confirmed at quotation. Contact our team for technical advice, configuration support or to request a quote.
