PM100

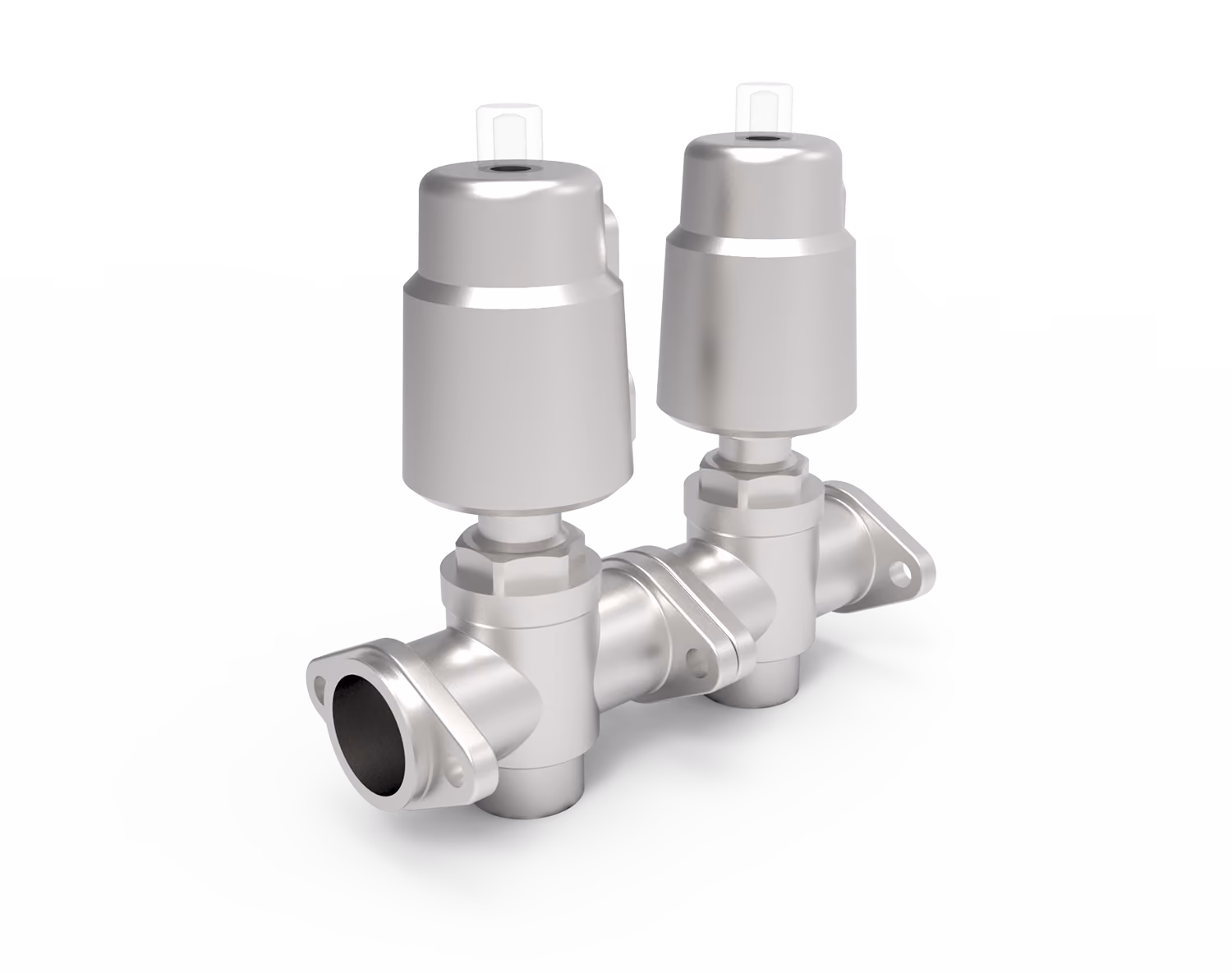

Series PM100 Modular Double Acting Pneumatic Valve Ultravalve supplies the Series PM100 2 way bi-stable double acting pneumatically operated valve for modular flow control and fluid mixing in demanding industrial systems. Designed for system integrators and plant engineers, the PM100 supports modular assembly for compatible packaging, drinks filling machinery, textile printing, pharmacy and medical equipment, chemical industry, foaming equipment and water or sewage disposal applications. With an AISI 316 stainless steel body and PTFE sealing, the PM100 is suitable for compatible water, alcohol, oils, fuels, steam, natural gases or liquids, organic solvents, acids and lyes when correctly specified and installed. Dependable Modular Flow Control for Complex Fluid Mixing Ultravalve’s Midlands based warehouse offers a wide range of pneumatic actuated valves from stock, subject to configuration and current availability. Designed to support maintenance projects, chemical processing, food and beverage filling machines, industrial automation and water treatment systems, these valves help provide fast replacement options for urgent pipework and automated industrial assemblies. Modular Assembly: Designed for modular valve assembly and described in the datasheet as a strong choice for fluid mixing, with flanged connection modularity and dedicated connection kits available. Bi-Stable Double Acting Control: Operates as a 2 way bi-stable double acting pneumatically operated valve as standard, with normally closed and normally open versions available on request by adding /NC or /NO to the valve code. Defined Pressure & Control Requirements: Supports fluid pressure up to max 14 bar, depending on valve size. Control pressure starts from 4.5 bar according to the datasheet table, using neutral gas or air as the control fluid. Stainless Steel & Seal Construction: Manufactured with an AISI 316 stainless steel body, PTFE sealing and AISI 304 actuator. The actuator size is listed as 50 mm. Media & Temperature Suitability: Suitable for compatible water, alcohol, oils, fuels, steam, natural gases or liquids, organic solvents, acids and lyes. Fluid temperature range is listed as -10°C to +180°C, with ambient temperature from -10°C to +80°C and maximum fluid viscosity of 600 cSt. Connection & Mounting Guidance: Features threaded BSP or NPT connections, with a G1/8 pilot thread and universal mounting position as stated in the datasheet. Connection Kit Options: Available connection kits include inlet plate, module connection kit, end plate and threaded connection kit on request, supporting modular system configuration. Operational Features: Includes water hammer effect prevention, PTFE sealing pack and maintenance free sealing pack for compatible industrial fluid handling applications. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series PM100 modular double acting pneumatic valve is available to order, with delivery options confirmed at quotation. Contact our team for technical advice, connection kit details or to request a quote.
