P270

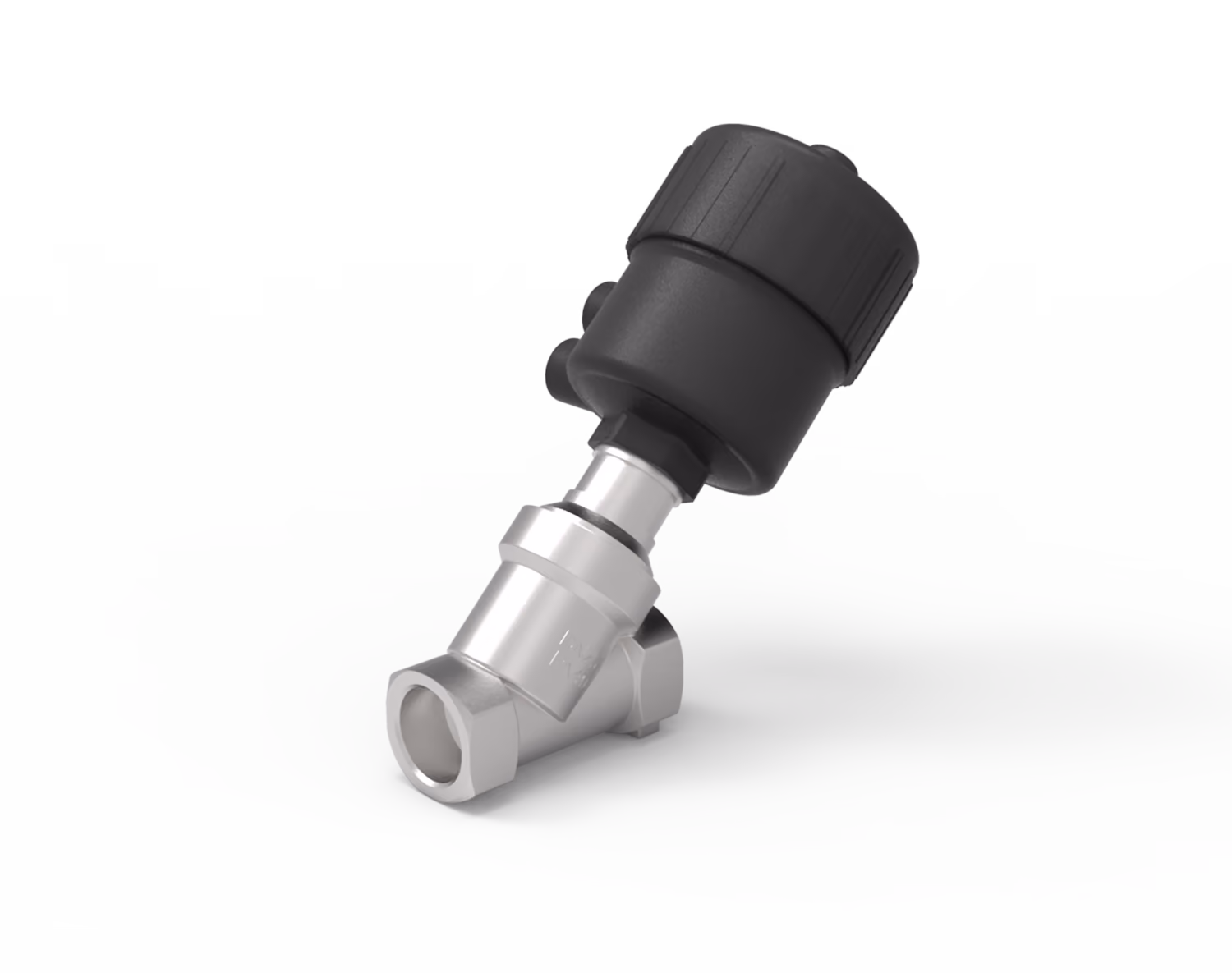

Series P270 Stainless Steel 2 Way Normally Open Pneumatic Angle Seat Valve Ultravalve supplies the Series P270 2 way normally open pneumatically operated angle seat valve for robust flow control in demanding industrial environments. Constructed with an AISI 316 stainless steel body and PTFE seal, the Series P270 is designed for compatible industrial automation, steam, water, hot water, heating and general process applications requiring normally open operation. In its standard un-actuated state, the valve allows flow and closes when sufficient pilot pressure is applied, subject to correct specification, media compatibility, pressure conditions and installation. High Flow Normally Open Pneumatic Control for Industrial Systems Ultravalve’s Midlands based warehouse offers a wide range of Series P270 valves to support industrial automation, water networks, steam systems and critical fluid handling upgrades, subject to configuration and current availability. Engineered for demanding process control, these valves help provide fast replacement options for applications requiring high flow capacity, stainless steel construction and compatibility with high temperature media. Normally Open Angle Seat Design: The 2 way normally open angle seat configuration provides high flow performance, with an anti-water hammer feature when the fluid entry is below the seat. Pneumatic Actuation Performance: Uses an orientable Ø70 pneumatic actuator with pilot pressure from 0 to 10 bar. The actuator body is Polyamide 66 with 30% glass fibre, with NBR gaskets and suitability for dry or lubricated air, gases and neutral fluids up to +60°C. Defined Pressure & Flow: Supports a maximum allowable pressure of PS 40 bar. Maximum differential operating pressure is 16 bar for 1/2”, 10 bar for 3/4” and 10 bar for 1”. Orifice sizes are 15 mm, 20 mm and 25 mm, with Kv values listed as 70, 130 and 150 m³/h. Stainless Steel & Seal Construction: Manufactured with an AISI 316 stainless steel body, PTFE seal and maintenance free PTFE/FKM packing gland, supporting fluid temperatures from -40°C to +180°C and maximum fluid viscosity of 600 cSt. Connection & Mounting Guidance: Features GAS ISO 228/1 or NPT ANSI/ASME B1.20.1 threaded connections from 1/2” to 1”. The datasheet states universal mounting position. Operational Features: Includes an optical position indicator, self adjusting internal seal, back pressure resistance capability and maintenance free sealing pack, supporting practical inspection and maintenance in industrial process environments. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series P270 stainless steel normally open pneumatic angle seat valve is available to order, with delivery options confirmed at quotation. Contact our team for technical advice or to request a quote.
