A214

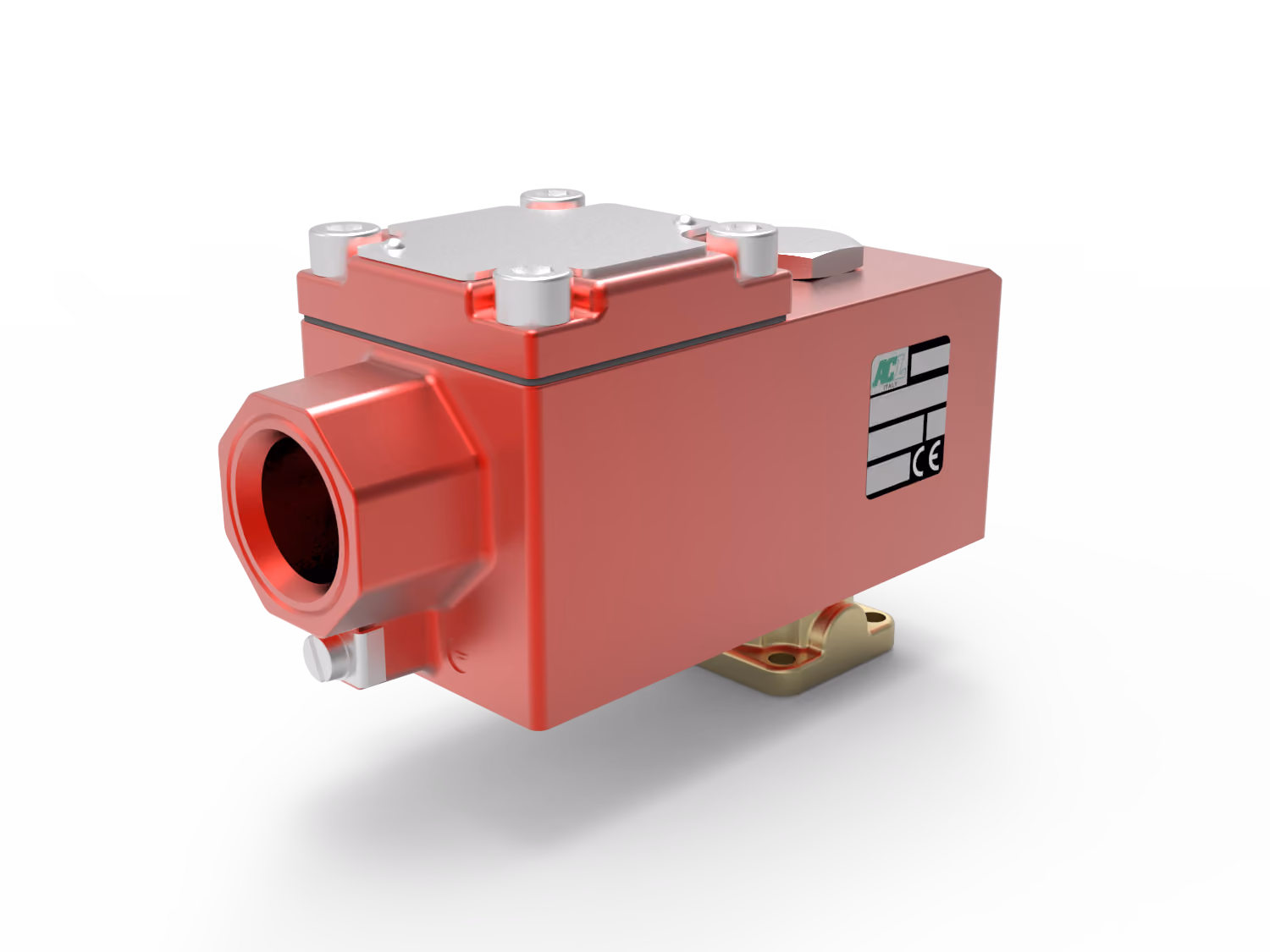

Series A214 ATEX Normally Open Flange-Fixing Solenoid Valves Ultravalve supplies the Series A214 2-way normally open direct-acting poppet solenoid valve for automated on/off fluid control in hazardous area industrial environments. Featuring a brass valve body, □32 flange fixing and ATEX certified explosion-proof coil, the A214 is designed for applications requiring normally open operation and compact flange-mounted integration. Dependable Normally Open Flow Automation for Hazardous Environments Available from our UK warehouse, subject to configuration and current availability, the A214 range supports maintenance and replacement requirements for hazardous area systems. Designed for reliable on/off control, these valves are suitable for general fluid-handling applications where a normally open valve function is required. Full Hazardous Area Certification: Features an ATEX certified explosion-proof A6 coil for gas and dust hazardous areas: ATEX II 2GD Ex d IIC T6/T5/T4 Gb IP66 and Ex tb IIIC T85°C/T100°C/T135°C Db IP66. Normally Open Direct-Acting Design: The A214 is a 2 way normally open direct-acting poppet valve, operating from 0 bar minimum differential pressure. Defined Pressure Handling: Supports a maximum allowable pressure of PS 50 bar, with maximum differential operating pressure dependent on orifice size and AC/DC coil configuration. For steam applications, the maximum allowable pressure is PS 2.5 bar gauge. Robust Brass Construction: Manufactured with a brass body and seal options including NBR, FPM or EPDM for compatibility with suitable media. Flange-Mounted Integration: Designed with a □32 flange fixing for integration into compatible equipment and manifold-style installations. Continuous Electrical Duty: Rated for ED100% continuous service, supporting continuous coil energisation in suitable industrial applications. Temperature Guidance: The valve/seal temperature range is listed as -10°C to +90°C, while ambient limits depend on the coil and ATEX temperature class. Electrical Connection: Supplied with a 1/2" NPT electrical connection, with M20x1.5 available on request. Mounting Flexibility: Suitable for universal mounting positions, as stated in the product data sheet. Options: Available with stainless steel armature tube and electroless nickel plating options. Versions for fluid temperature down to -40°C are available on request. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series A214 brass normally open explosion-proof solenoid valve is available with fast delivery options, contact our team for technical advice, current availability or to request a quote.
