A206

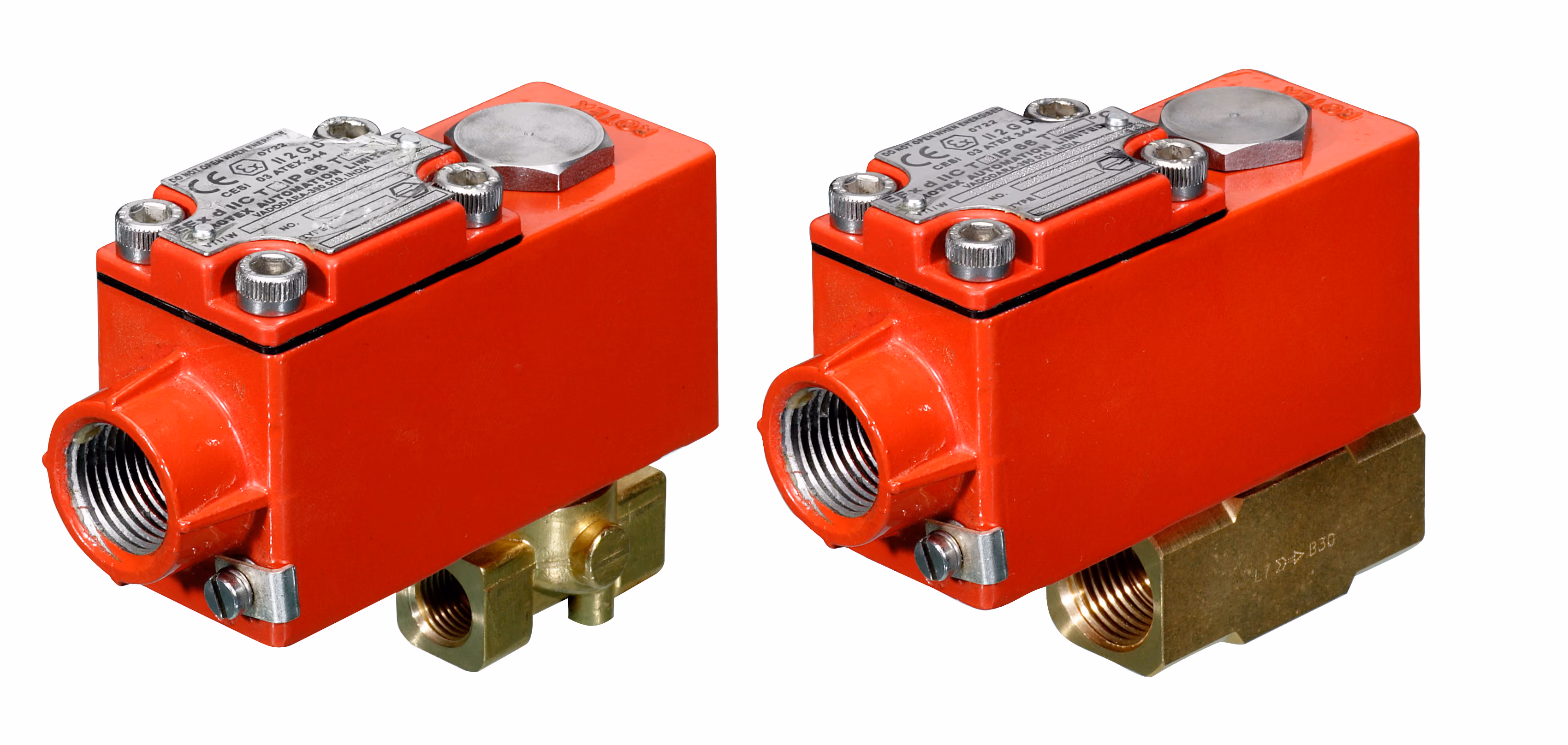

Series A206 ATEX Normally Open Direct Acting Solenoid Valves Ultravalve supplies the Series A206 2 way normally open direct-acting poppet solenoid valve for automated on/off flow control in hazardous area applications. Featuring a brass valve body and ATEX certified explosion-proof coil, the A206 is designed for systems requiring normally open valve operation with suitable non-explosive media. Dependable Normally Open Flow Control for Industrial Plants Available from UK stock, subject to configuration and current availability, the A206 supports maintenance teams, system integrators and engineers requiring rapid component replacement for hazardous area fluid systems. The direct-acting poppet design allows operation from 0 bar differential pressure, making it suitable for low pressure and intermittent applications. Full Hazardous Area Certification: Features an ATEX certified explosion-proof coil for gas and dust hazardous areas: ATEX II 2GD Ex d IIC T6/T5/T4 Gb and Ex tb IIIC T80°C/T95°C/T130°C Db IP66. Normally Open Operation: The A206 is a 2 way normally open solenoid valve, allowing flow in its de-energised state and closing when energised, subject to the selected configuration and installation. Defined Pressure Handling: Supports a maximum allowable pressure of PS 100 bar, with maximum differential operating pressure dependent on the selected orifice, ranging from 23 bar down to 3 bar. Direct Acting Performance: The direct-acting poppet design operates from 0 bar minimum differential pressure, supporting applications where pressure assistance is not available. Robust Brass Construction: Manufactured with a brass body and brass seal assembly, with AISI 430FR core and plunger, AISI 302 springs, AISI 316 armature tube and seal options including NBR, FPM or EPDM. Continuous Electrical Duty: Rated for ED100% continuous service, supporting continuous coil energisation in demanding industrial applications. Flexible Installation: Available with G1/8, G1/4, G3/8 and G1/2 ISO 228 threaded connections, alongside a 1/2" NPT electrical connection, with M20x1.5 available on request. Application Constraint: Suitable only for media that are not potentially explosive, despite the ATEX-certified coil housing. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series A206 normally open direct-acting poppet solenoid valve is available with fast delivery options, contact our team for technical advice, current availability or to request a quote.
