A114

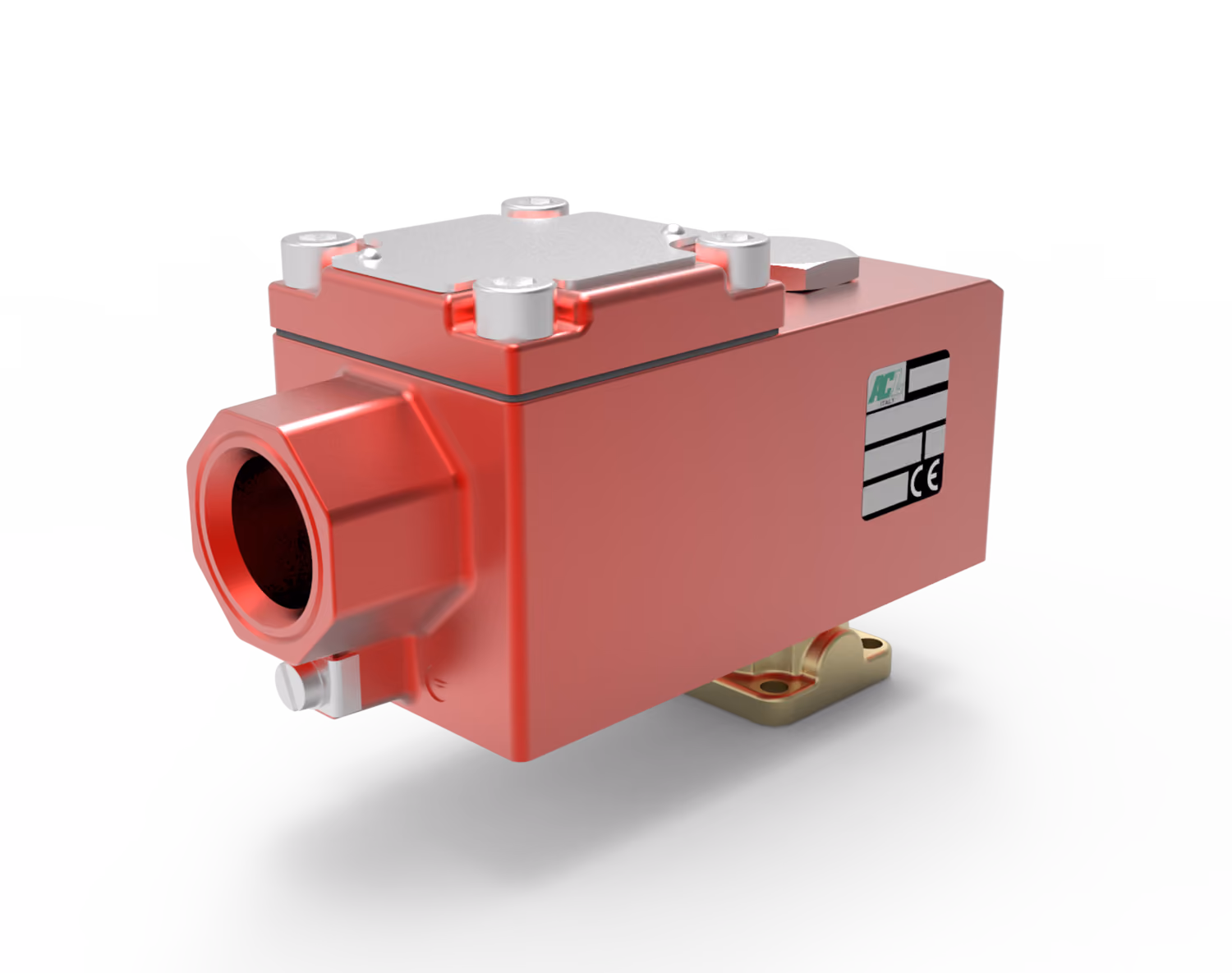

Series A114 ATEX Flange-Fixing Direct Acting Solenoid Valves Ultravalve supplies the Series A114 2-way normally closed direct-acting poppet solenoid valve for reliable on/off flow isolation in hazardous area applications. Designed with a secure □32 flange fixing, brass valve body and ATEX certified explosion-proof coil, the A114 is suited to specialised industrial installations requiring compact, fixed mechanical integration. Secure Flange Fixing for Specialised Industrial Applications Stocked in our UK warehouse, subject to configuration and current availability, the A114 supports maintenance, replacement and system upgrade requirements for hazardous area installations. The valve operates from 0 bar differential pressure and supports a maximum allowable pressure of PS 80 bar, with maximum differential operating pressure dependent on the selected orifice and AC/DC coil configuration. Full Hazardous Area Certification: Features an ATEX certified explosion-proof A6 coil for gas and dust hazardous areas: ATEX II 2GD Ex d IIC T6/T5/T4 Gb IP66 and Ex tb IIIC T85°C/T100°C/T135°C Db IP66. Dedicated Flange Integration: Built with a □32 flange fixing to support specialised mechanical infrastructure and compact equipment integration. Direct-Acting Performance: The direct-acting poppet design allows operation from 0 bar differential pressure, making it suitable for applications where pressure assistance is not available. Defined Pressure Handling: Supports a maximum allowable pressure of PS 80 bar, while maximum differential pressure varies by orifice size and AC/DC coil configuration. Robust Brass Construction: Manufactured with a brass body and seal options including NBR, FPM or EPDM for compatibility with suitable general industrial media. Continuous Duty Operation: Rated for ED100% continuous service, supporting continuous electrical energisation in demanding industrial environments. Flexible Electrical Connection: Supplied with a 1/2" NPT electrical connection, with M20x1.5 available on request. Customisable Options: Available with manual override, electroless nickel plating and stainless steel seat insert options on request. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series A114 flange-fixing solenoid valve is available with fast delivery options, contact our team for technical advice, current availability or to request a quote.
