A110

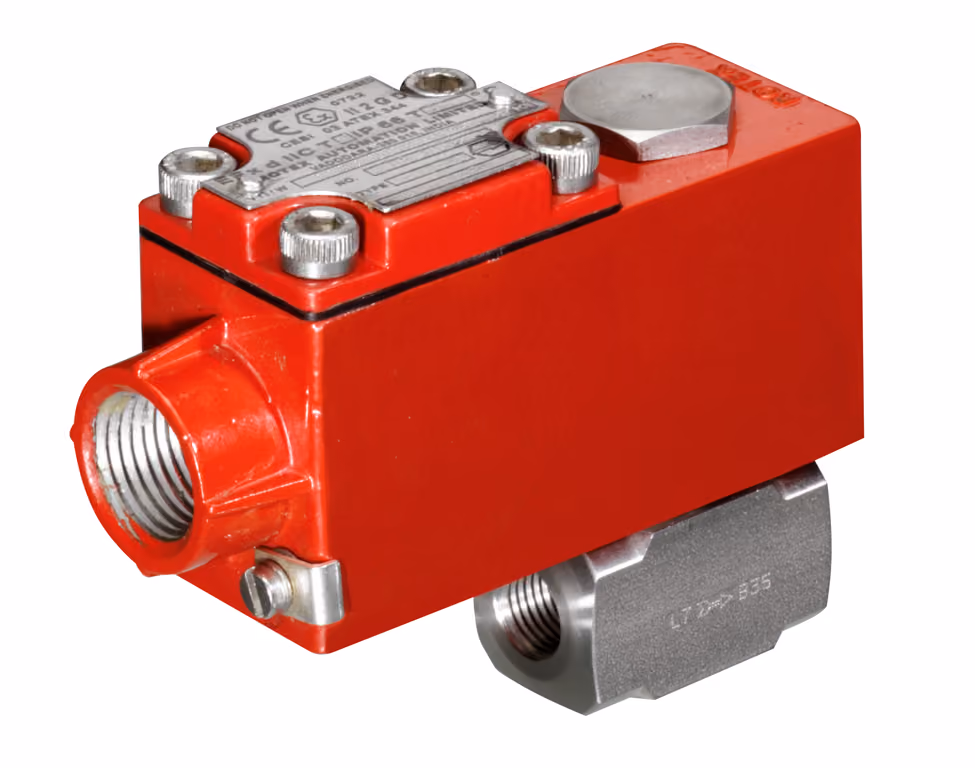

Series A110 ATEX Stainless Steel Direct Acting Solenoid Valves Ultravalve supplies the Series A110 2-way normally closed direct-acting poppet solenoid valve for reliable on/off flow isolation in hazardous-area applications. Featuring ATEX gas and dust certification and an AISI 303 stainless steel body, the A110 supports safe and dependable operation in general industrial fluid-handling systems when correctly specified and installed. Stainless Steel Flow Isolation for Hazardous Environments Available from our UK warehouse, the A110 range is ready for rapid dispatch to support maintenance and replacement requirements, subject to configuration and current availability. Designed for hazardous-area installations, these stainless steel-bodied valves are suitable for systems where safe electrical operation is required from zero differential pressure. Full Hazardous Area Certification: Features an ATEX-certified explosion-proof coil for gas and dust hazardous areas: ATEX II 2GD Ex d IIC T6/T5/T4 Gb and Ex tb IIIC T80°C/T95°C/T130°C Db IP66. Direct Acting Performance: The direct-acting poppet design allows operation from 0 bar differential pressure, making it suitable for low-pressure systems. Defined Pressure Handling: Supports a maximum allowable pressure PS 100 bar, with maximum differential operating pressures dependent on the selected valve size, orifice and AC/DC coil configuration. Temperature-Class Mapped Duty: Rated for ED100% continuous service, with listed ambient operating limits of -10°C to +35°C for T6, -10°C to +50°C for T5, and -10°C to +60°C for T4. Robust Stainless Steel Construction: Manufactured with an AISI 303 body and AISI 302 springs, with seal options including NBR, FPM or EPDM for media compatibility. Coil Housing Options: Available with a standard red coloured alloy housing coil A6 or stainless steel housing coil X6 to suit specific environmental requirements. Flexible Installation: Features G1/4, G3/8 and G1/2 ISO 228 threaded fluid connections, alongside a 1/2" NPT electrical connection, with M20x1.5 available on request. Application Constraint: Specifically designed for use with media that are not potentially explosive, despite the ATEX certified coil housing. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series A110 stainless steel direct-acting solenoid valve is available with fast delivery options, contact our team for technical advice, current availability or to request a quote.
