A106

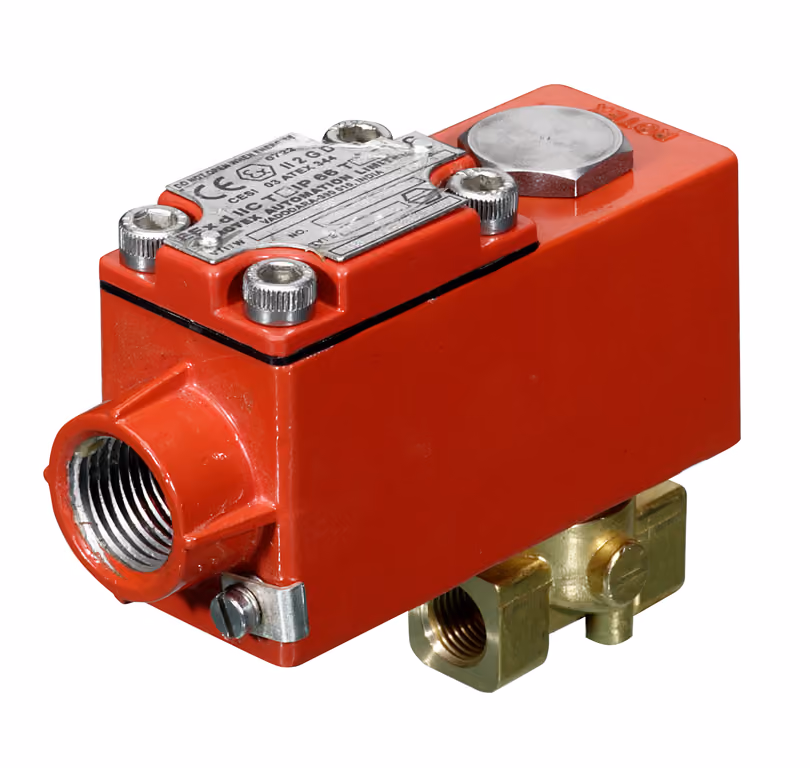

Series A106 ATEX Direct Acting Solenoid Valves Ultravalve supplies the Series A106 2 way normally closed direct-acting poppet solenoid valve for reliable on/off flow isolation in hazardous area applications. Featuring an ATEX certified explosion-proof coil and brass valve body, the A106 supports safe and dependable operation in general industrial fluid handling systems when correctly specified and installed. Direct-Acting Flow Isolation for Hazardous Environments Available from our UK warehouse, the A106 range is ready for rapid dispatch to support maintenance and replacement requirements, subject to configuration and current availability. Designed for hazardous area installations, these valves are suitable for systems where safe electrical operation is required from zero differential pressure. Full Hazardous Area Certification: Features an ATEX certified explosion-proof coil for gas and dust hazardous areas: ATEX II 2GD Ex d IIC T6/T5/T4 Gb and Ex tb IIIC T80°C/T95°C/T130°C Db IP66. Direct Acting Performance: The direct-acting poppet design allows operation from 0 bar differential pressure, making it suitable for low pressure systems and applications where no pressure assistance is available. Defined Pressure Handling: Supports a maximum allowable pressure of PS 100 bar, with maximum differential operating pressure dependent on the selected orifice, valve size and AC/DC coil configuration. Continuous Duty Operation: Rated for ED100% continuous service, supporting reliable operation in demanding industrial applications. Robust Construction: Manufactured with a brass body and seal options including NBR, FPM or EPDM for compatibility with a range of general fluid media. Flexible Installation: Features G1/8, G1/4, G3/8 and G1/2 ISO 228 threaded fluid connections, depending on version, alongside a 1/2" NPT electrical connection, with M20x1.5 available on request. Application Constraint: Specifically designed for use with media that are not potentially explosive, despite the ATEX certified coil housing. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series A106 direct-acting poppet solenoid valve is available with fast delivery options, contact our team for technical advice, current availability or to request a quote.
