314

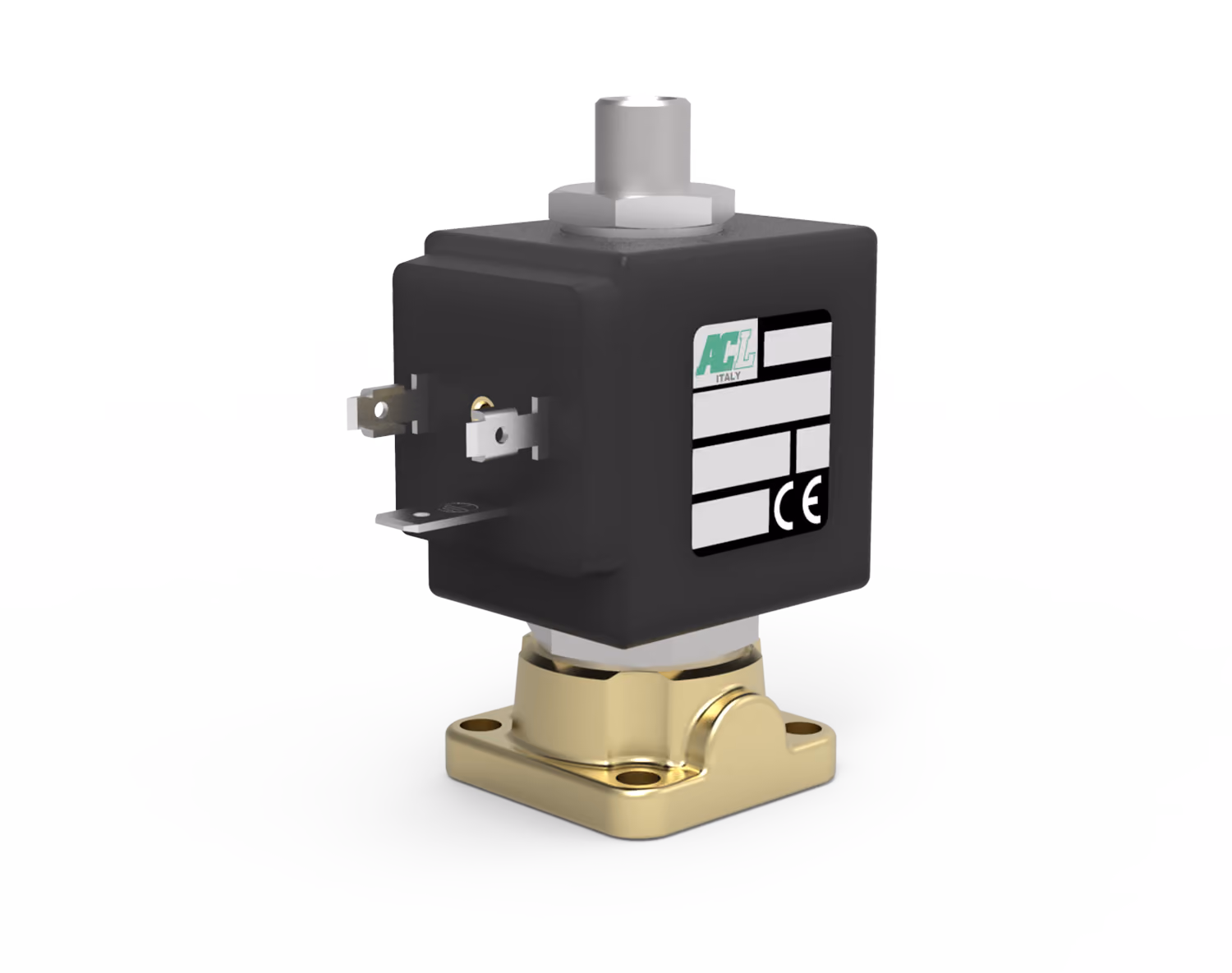

Series 314 Brass Flanged 3 Way Direct Acting Solenoid Valve Ultravalve supplies the Series 314 3 way direct-acting poppet type solenoid valve for automated directional flow control in compact pneumatic and industrial systems. Constructed with a brass body and □32 flange fixing, the Series 314 is designed for compatible air applications requiring direct integration into equipment or manifold assemblies, dependable 3 way operation and direct-acting control from 0 bar differential pressure. Available in normally closed, normally open and universal configurations, this valve controls and redirects flow depending on its specified de-energised state, subject to correct specification, media compatibility and installation. Dependable Flanged 3 Way Control for Pneumatic Assemblies Ultravalve’s Midlands based warehouse offers a wide range of Series 314 valves from stock, subject to configuration and current availability. Designed to support maintenance projects, custom manifold builds, industrial automation upgrades and general pneumatic requirements, these valves help provide fast replacement options for urgent pipework and compatible air applications. Direct-Acting 3 Way Performance: The 3 way direct-acting poppet type design enables electrically actuated flow isolation and redirection from a minimum differential pressure of 0 bar. Flanged Integration: Designed with a □32 flange fixing for straightforward direct integration into compatible equipment and manifold-style assemblies. Defined Pressure & Flow: Supports a maximum allowable pressure of PS 80 bar, with maximum differential operating pressure dependent on orifice size, flow path and valve configuration. Selected normally closed versions reach up to 20 bar, normally open versions up to 9 bar and universal versions up to 5 bar. Available with Kv values from 0.07 to 0.20 m³/h. Brass & Stainless Construction: Manufactured with a brass body, AISI 303 armature tube, AISI 430FR plunger and core and AISI 302 springs. Seal & Fluid Compatibility: Seal materials are listed as NBR, FPM and EPDM, with suitability dependent on valve code, media, temperature and application compatibility. Maximum fluid viscosity is listed as 25 cSt. Steam Application Constraint: The maximum allowable pressure for steam applications is strictly limited to PS 2.5 bar gauge. Continuous Electrical Duty & Protection: Uses Series 2 coils with continuous service ED100%. Electrical connection is DIN 43650A with PG9 connector, with protection rated IP65 when the connector is fitted and IP00 without connector. Additional Options & Temperature Guidance: Available with manual override, electroless nickel plating, stainless steel seat, Class H insulation, cable attached versions, special coil voltages, special coil powers and certified coils. Versions for fluid temperature down to -40°C are available on request. Ambient temperature is listed as -10°C to +80°C according to the coil. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 314 brass flanged 3 way direct-acting solenoid valve is available to order, with delivery options confirmed at quotation, contact our team for technical advice or to request a quote.
