313

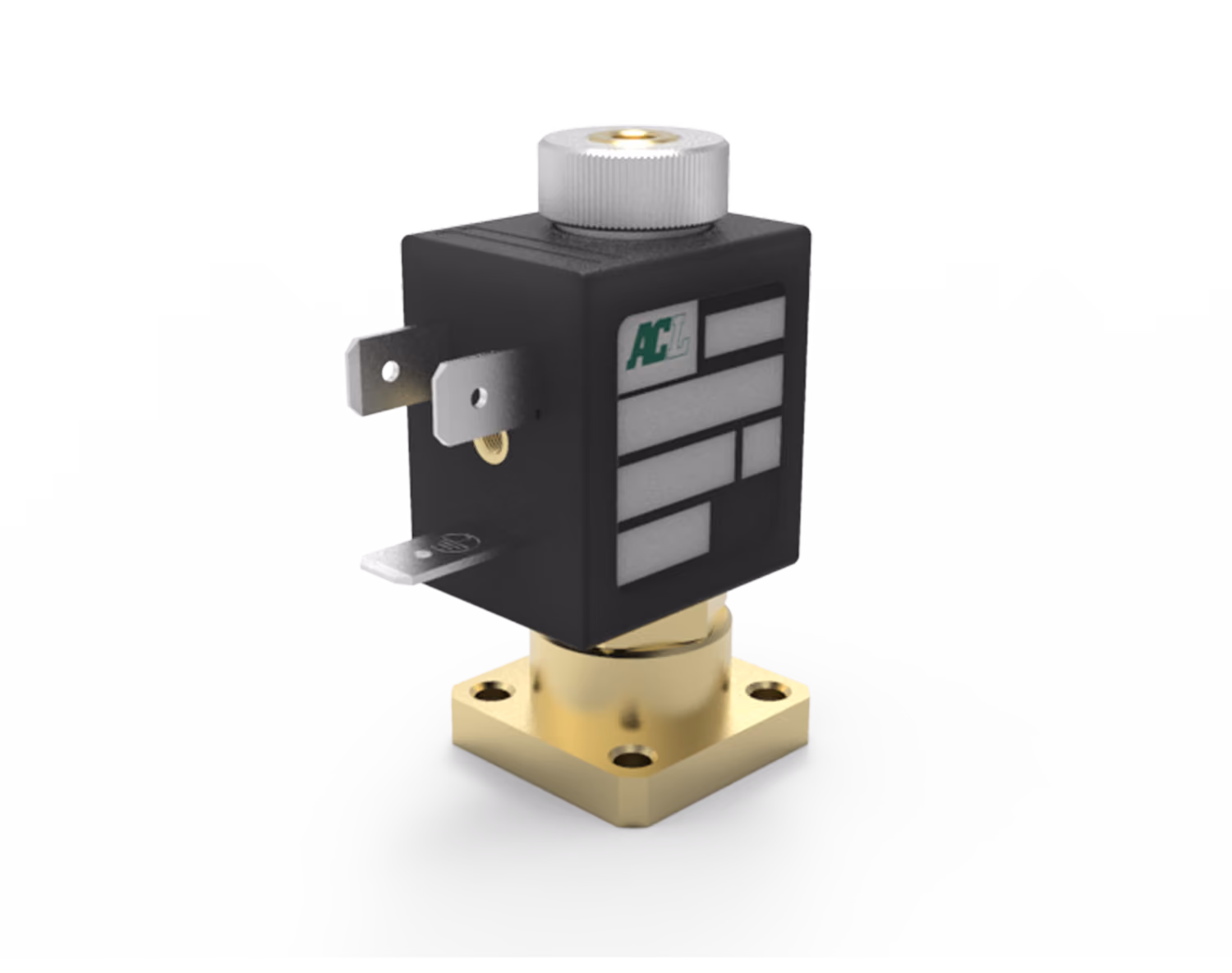

Series 313 Brass Flanged 3 Way Normally Open Direct Acting Solenoid Valve Ultravalve supplies the Series 313 3 way normally open direct-acting poppet type solenoid valve for automated directional flow control in compact industrial systems. Constructed with a brass body and □25 flange fixing, the Series 313 is designed for compatible industrial applications requiring direct integration into equipment or manifold assemblies, dependable normally open 3 way operation and direct-acting control from 0 bar differential pressure. In its de-energised state, the valve operates in its normally open flow configuration and changes flow path when energised, subject to correct specification, media compatibility and installation. Dependable Flanged Normally Open 3 Way Control for Industrial Assemblies Ultravalve’s Midlands based warehouse offers a wide range of Series 313 valves from stock, subject to configuration and current availability. Designed to support maintenance projects, custom manifold builds, industrial automation upgrades and general process requirements, these valves help provide fast replacement options for urgent pipework and compatible industrial assemblies. Normally Open Direct-Acting Performance: The 3 way normally open direct-acting poppet type design enables electrically actuated flow control and redirection from a minimum differential pressure of 0 bar. Flanged Integration: Designed with a □25 flange fixing for straightforward direct integration into compatible equipment and manifold-style assemblies. Defined Pressure & Flow: Supports a maximum allowable pressure of PS 50 bar, with maximum differential operating pressure dependent on orifice size, flow path and coil selection, reaching up to 12 bar on selected 1.2 mm configurations. Available with selected 1.2 mm and 1.5 mm orifice combinations, with Kv values from 0.04 to 0.06 m³/h. Brass Construction: Manufactured with a brass body and brass armature tube as standard, alongside an AISI 430FR plunger and core and AISI 302 springs. A stainless steel armature tube is available as an option. Seal & Fluid Compatibility: Seal materials are listed as NBR, FPM and EPDM, with suitability dependent on valve code, media, temperature and application compatibility. Maximum fluid viscosity is listed as 25 cSt. Steam Application Constraint: The maximum allowable pressure for steam applications is strictly limited to PS 2.5 bar gauge. Continuous Electrical Duty & Protection: Uses compact Series 3 coils with continuous service ED100%. Electrical connection is DIN 46244 with PG9 connector, with protection rated IP65 when the connector is fitted and IP00 without connector. Additional Options & Temperature Guidance: Available with stainless steel armature tube, electroless nickel plating, exhaust port with hosetail connection, Class H insulation, cable attached versions, special coil voltages, special coil powers and certified coils. A Series 7 explosion proof coil according to ATEX - EExmII is available subject to correct specification and application suitability. Ambient temperature is listed as -10°C to +80°C according to the coil. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 313 brass flanged 3 way normally open direct-acting solenoid valve is available to order, with delivery options confirmed at quotation, contact our team for technical advice or to request a quote.
