306

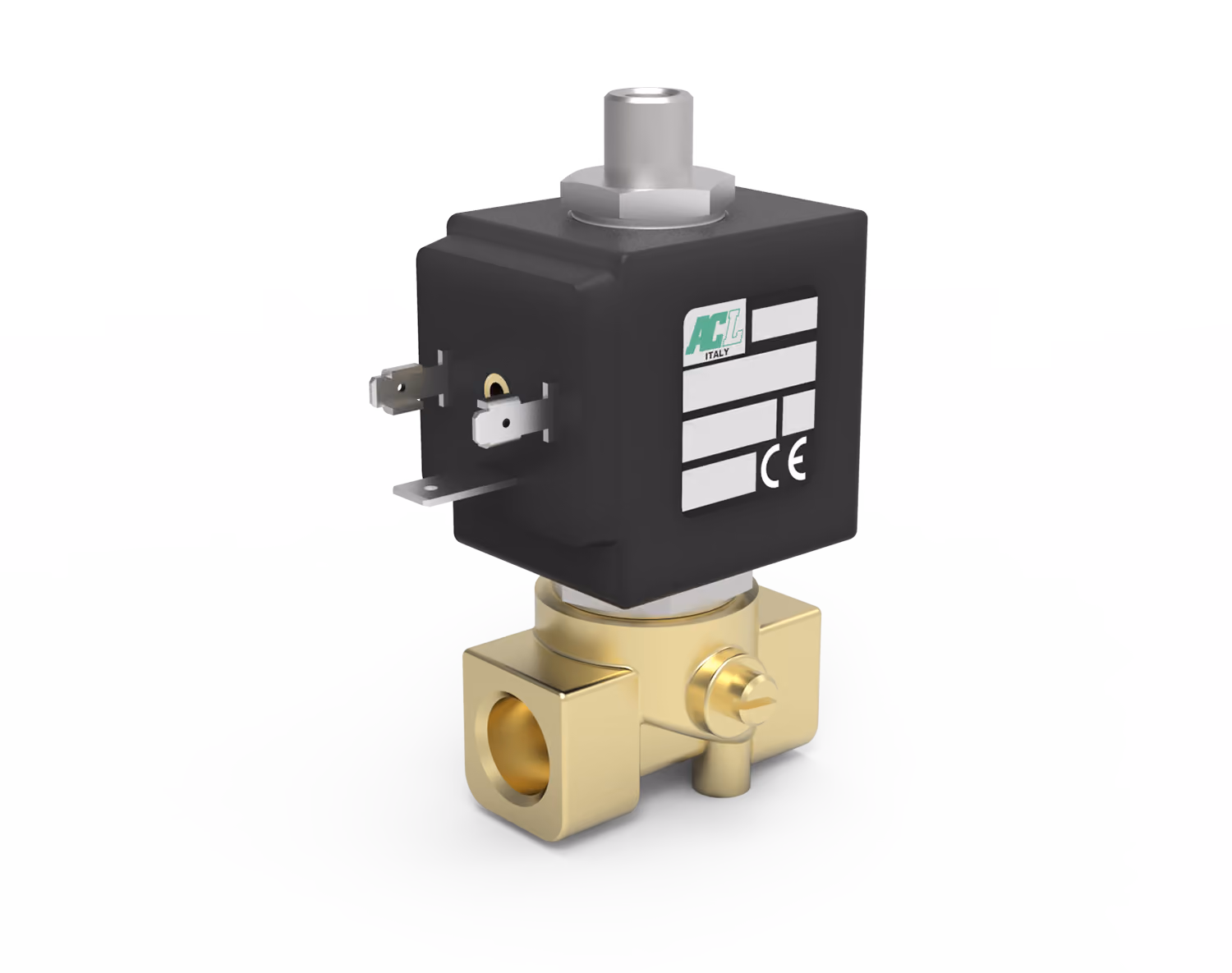

Series 306 Brass 3 Way Direct Acting Solenoid Valve Ultravalve supplies the Series 306 3 way direct-acting poppet type solenoid valve for automated directional flow control in demanding industrial systems. Constructed with a brass body, the Series 306 is designed for compatible water, air, inert gas, compressor, fuel gas, water treatment and industrial automation applications requiring dependable 3 way operation and direct-acting control from 0 bar differential pressure. Available in normally closed, normally open and universal configurations, this valve controls and redirects flow depending on its specified de-energised state, subject to correct specification, media compatibility and installation. Dependable Direct-Acting 3 Way Control for Industrial Applications Ultravalve’s Midlands based warehouse offers a wide range of Series 306 valves from stock, subject to configuration and current availability. Designed to support maintenance projects, industrial automation upgrades, compressor systems and water treatment requirements, these valves help provide fast replacement options for urgent pipework and general process applications. Direct-Acting 3 Way Performance: The 3 way direct-acting poppet type design enables electrically actuated flow isolation and redirection from a minimum differential pressure of 0 bar. Defined Pressure & Flow: Supports a maximum allowable pressure of PS 80 bar, with maximum differential operating pressure dependent on orifice size and valve configuration. Selected normally closed versions reach up to 20 bar, normally open versions up to 9 bar and universal versions up to 5 bar. Available with Kv values from 0.07 to 0.20 m³/h. Brass Construction: Manufactured with a brass body and brass armature tube, alongside an AISI 430FR plunger and core and AISI 302 springs. Seal & Fluid Compatibility: Seal materials are listed as NBR, FPM and EPDM, with suitability dependent on valve code, media, temperature and application compatibility. Maximum fluid viscosity is listed as 25 cSt. Steam Application Constraint: The maximum allowable pressure for steam applications is strictly limited to PS 2.5 bar gauge. Flexible Integration: Features G1/8 and G1/4 ISO 228 threaded fluid connections for straightforward installation into compatible systems, with universal mounting position as stated in the product data sheet. Continuous Electrical Duty & Protection: Uses Series 2 coils with continuous service ED100%. Electrical connection is DIN 43650A with PG9 connector, with protection rated IP65 when the connector is fitted and IP00 without connector. Additional Options & Temperature Guidance: Available with manual override, electroless nickel plating, stainless steel seat, Class H insulation, cable attached versions, special coil voltages, special coil powers and certified coils. Versions for fluid temperature down to -40°C are available on request. Ambient temperature is listed as -10°C to +80°C according to the coil. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 306 brass 3 way direct-acting solenoid valve is available to order, with delivery options confirmed at quotation, contact our team for technical advice or to request a quote.
