270

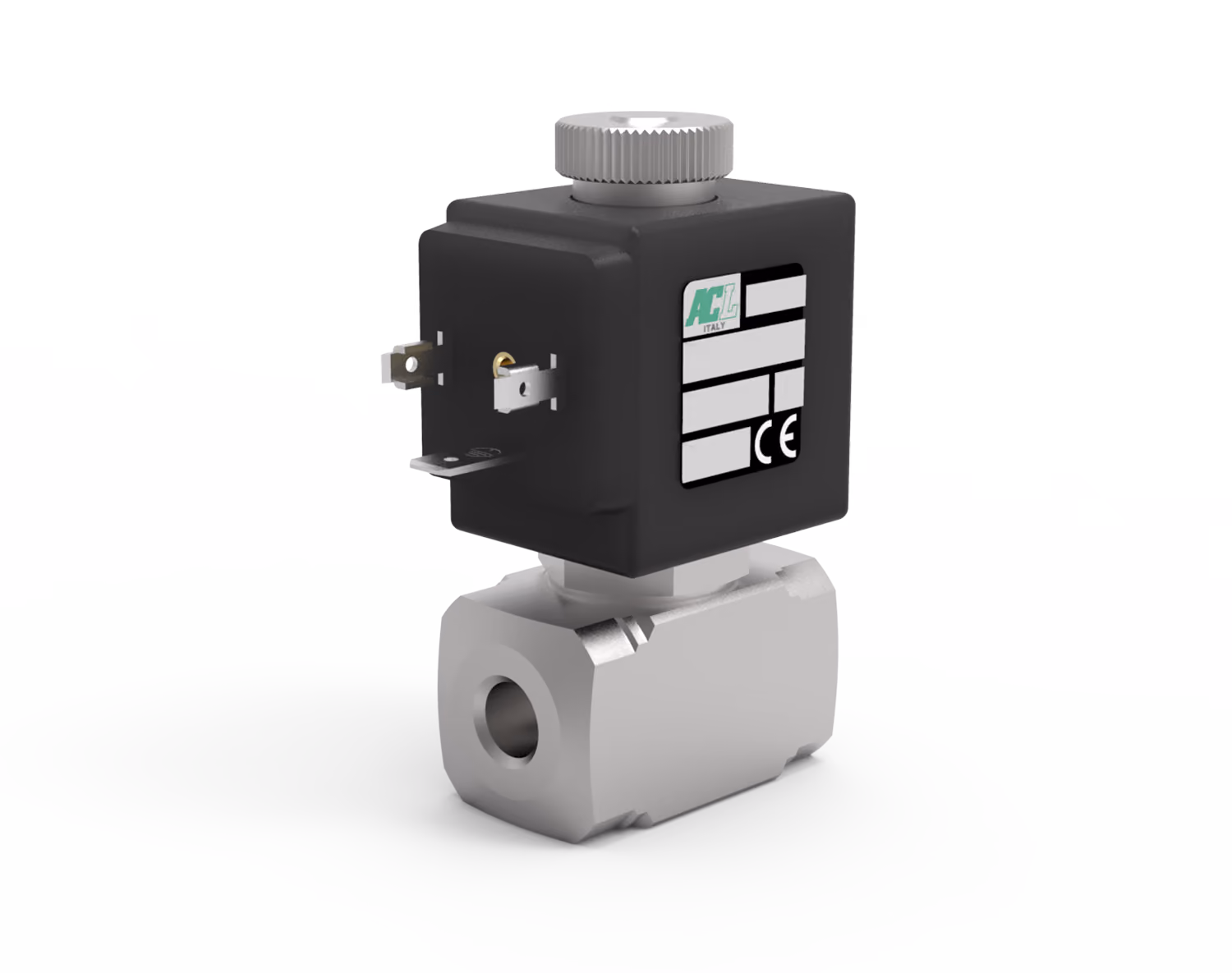

Series 270 AISI 316 2 Way Normally Open Direct Acting Solenoid Valve Ultravalve supplies the Series 270 2 way normally open direct-acting poppet solenoid valve for automated on/off flow control in demanding industrial systems. Constructed with an AISI 316 stainless steel body and armature tube, the Series 270 is designed for compatible industrial fluid-handling applications requiring corrosion resistant construction, normally open operation and direct-acting control from 0 bar differential pressure. In its de-energised state, the valve allows flow and closes when energised, subject to correct specification and installation. Dependable Stainless Steel Normally Open Control for Industrial Automation Ultravalve’s Midlands based warehouse offers a wide range of Series 270 valves from stock, subject to configuration and current availability. Designed to support maintenance projects and industrial system upgrades, these valves help provide fast replacement options for urgent pipework and general process requirements. Normally Open Direct-Acting Performance: The 2 way normally open direct-acting poppet design enables electrically actuated on/off flow control from 0 bar minimum differential pressure. Defined Pressure Handling: Supports a maximum allowable pressure of PS 50 bar, with maximum differential operating pressure dependent on orifice size and coil configuration, reaching up to 23 bar on selected configurations. AISI 316 Stainless Steel Construction: Manufactured with an AISI 316 body and armature tube, alongside an AISI 430FR plunger and core, AISI 302 springs, and a silver shading ring for corrosion resistance in suitable industrial applications. Seal Compatibility: Seal materials are listed as NBR, FPM, EPDM, PTFE and FFKM/Kalrez, with final seal selection dependent on valve code, media, temperature and application compatibility. Fluid Compatibility Guidance: Suitable for compatible industrial media with maximum fluid viscosity up to 25 cSt, subject to material, seal, pressure, temperature and certification compatibility. Flexible Integration: Features G1/4, G3/8 and G1/2 ISO 228 threaded fluid connections for straightforward installation into compatible systems. Steam Application Constraint: The maximum allowable pressure for steam applications is PS 2.5 bar gauge. Environmental Protection: Offers IP65 protection when the electrical connector is fitted and IP00 without connector, using DIN 43650A PG9 connector options. Optional Oxygen Compatibility: Available in specific versions for use with industrial oxygen certified coils. Temperature & Mounting Guidance: Ambient temperature is listed as -10°C to +80°C according to the coil, with seal temperature ranges dependent on selected seal material. Suitable for universal mounting positions, as stated in the product data sheet. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 270 AISI 316 stainless steel normally open solenoid valve is available to order, with delivery options confirmed at quotation, contact our team for technical advice or to request a quote.
