206

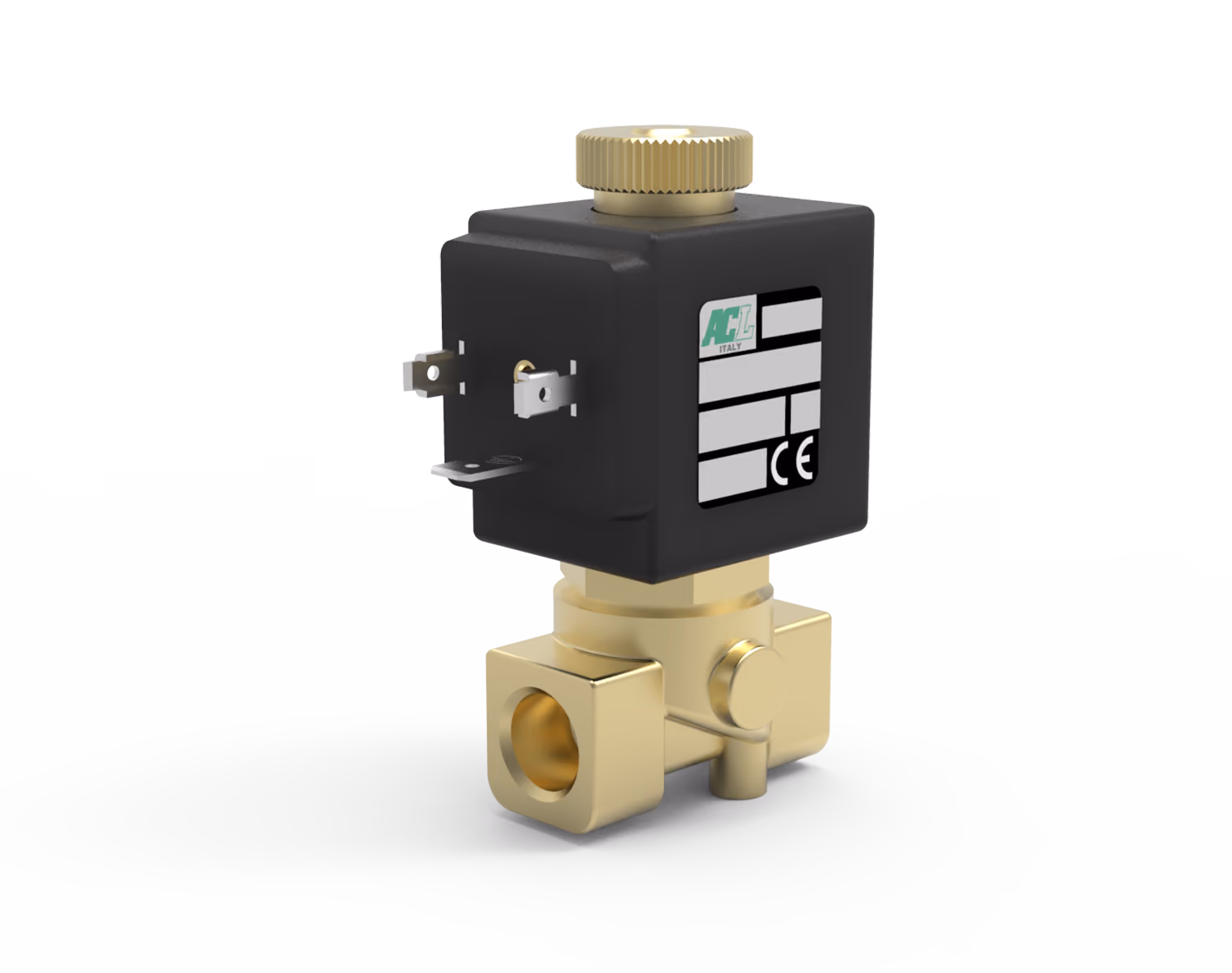

Series 206 Brass 2 Way Normally Open Direct Acting Solenoid Valve Ultravalve supplies the Series 206 2 way normally open direct-acting poppet type solenoid valve for automated on/off flow isolation in demanding industrial systems. Constructed with a robust brass body, the Series 206 is designed for compatible industrial, water, air, inert gas, compressor, fuel gas and water treatment applications requiring dependable normally open operation and direct-acting control from 0 bar differential pressure. In its de-energised state, the valve allows flow and closes when energised, subject to correct specification, media compatibility and installation. Dependable Normally Open Control for Industrial, Water and Gas Applications Ultravalve’s Midlands based warehouse offers a wide range of Series 206 valves from stock, subject to configuration and current availability. Designed to support maintenance projects, industrial automation upgrades, compressor systems and water treatment requirements, these valves help provide fast replacement options for urgent pipework and general process applications. Normally Open Direct-Acting Performance: The 2 way normally open direct-acting poppet type design enables electrically actuated on/off flow isolation from 0 bar minimum differential pressure. Defined Pressure & Flow: Supports a maximum allowable pressure of PS 50 bar, with maximum differential operating pressure reaching up to 23 bar on selected 1.5 mm configurations. Orifice sizes range from 1.5 mm to 6.4 mm, with Kv values from 0.07 to 0.64 m³/h. Robust Brass Construction: Manufactured with a brass body and brass armature tube as standard, alongside an AISI 430FR plunger and core and AISI 302 springs. A stainless steel armature tube is available as an option. Seal & Fluid Compatibility: Seal materials are listed as NBR, FPM and EPDM, with suitability dependent on valve code, media, temperature and application compatibility. Maximum fluid viscosity is listed as 25 cSt. Steam Application Constraint: The maximum allowable pressure for steam applications is strictly limited to PS 2.5 bar gauge. Flexible Integration: Features G1/8 and G1/4 ISO 228 threaded fluid connections for straightforward installation into compatible systems, with universal mounting position as stated in the product data sheet. Electrical Protection & Coil Options: Uses Series 2 or Series 5 coil options with DIN 43650A PG9 connectors. Protection is IP65 with the connector fitted and IP00 without connector. Additional Options & Temperature Guidance: Available with electroless nickel plating, certified coils, manual override on request, and versions for fluid temperature down to -40°C on request. Ambient temperature is listed as -10°C to +80°C according to the coil. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 206 brass normally open direct-acting solenoid valve is available to order, with delivery options confirmed at quotation, contact our team for technical advice or to request a quote.
