204

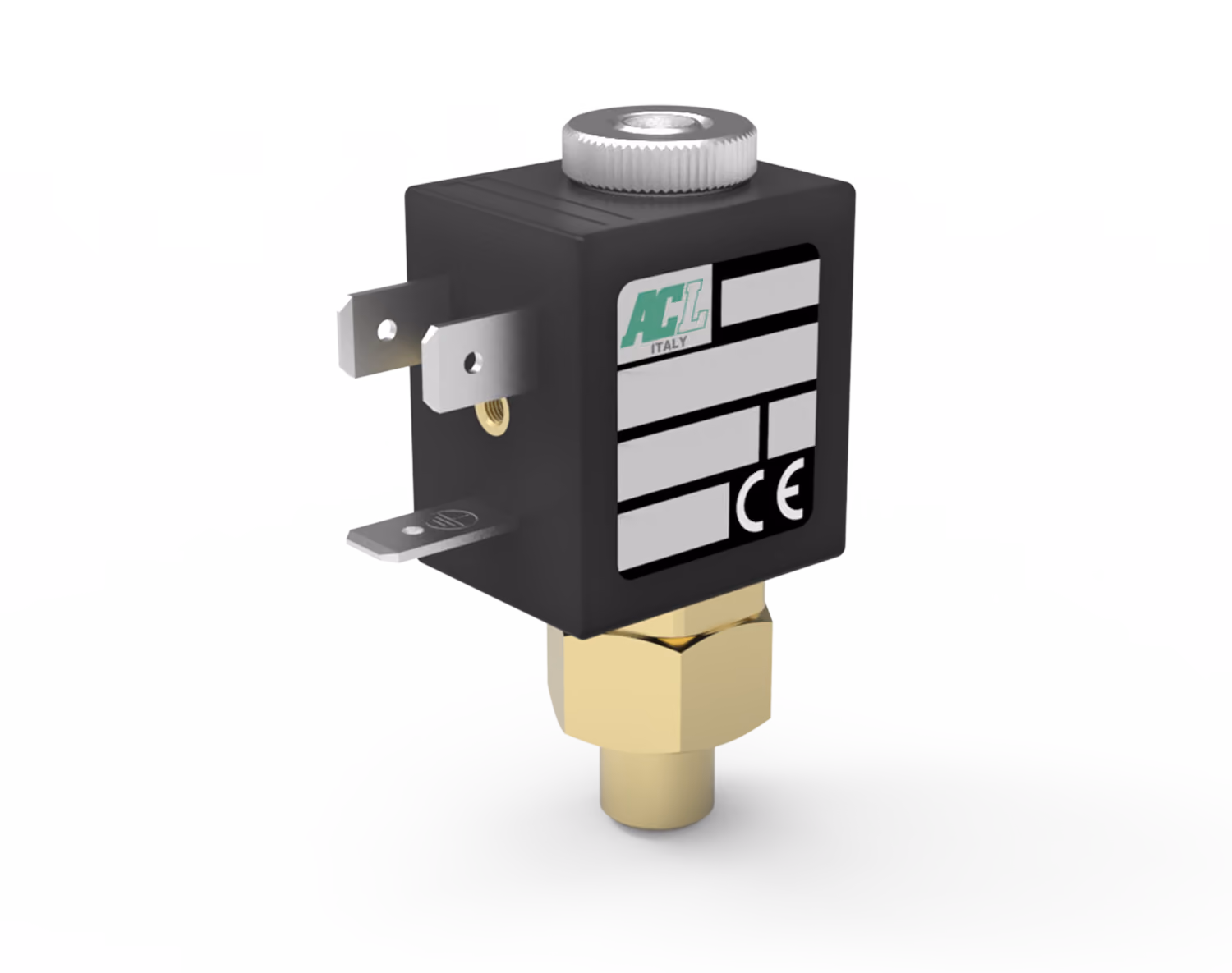

Series 204 Brass 2 Way Normally Open Direct Acting Solenoid Valve Ultravalve supplies the Series 204 2 way normally open direct-acting poppet type solenoid valve for automated on/off flow isolation in compact industrial systems. Constructed with a brass body, the Series 204 is designed for compatible air, automation and compressor applications requiring dependable normally open operation and direct-acting control from 0 bar differential pressure. In its de-energised state, the valve allows flow and closes when energised, subject to correct specification and installation. Compact Normally Open Control for Air, Automation and Compressor Systems Ultravalve’s Midlands based warehouse offers a wide range of Series 204 valves from stock, subject to configuration and current availability. Designed to support maintenance projects, pneumatic equipment upgrades and compact system requirements, these valves help provide fast replacement options for urgent pipework, small-bore installations and general automation applications. Normally Open Operation: The Series 204 allows flow when de-energised and closes when energised. Direct-Acting Performance: The 2 way normally open direct-acting poppet type design enables electrically actuated on/off flow isolation from 0 bar minimum differential pressure. Defined Pressure & Flow: Supports a maximum allowable pressure of PS 50 bar, with maximum differential operating pressure reaching up to 16 bar. Available with 1.5 mm and 1.7 mm orifice sizes, with Kv values of 0.06 and 0.08 m³/h. User Port Configurations: Available with M5 connection, hosetail connection, or hosetail connection with relief valve, to suit specific integration requirements. Brass Construction: Manufactured with a brass body and brass armature tube as standard, alongside an AISI 430FR plunger and core and AISI 302 springs. Seal & Fluid Compatibility: Seal materials are listed as NBR, FPM and EPDM, with suitability dependent on valve code, media, temperature and application compatibility. Integration, Duty & Protection: Features a G1/8 ISO 228 threaded connection, universal mounting position, ED100% continuous service, and IP65 protection with connector fitted. Protection is IP00 without connector, using a DIN 46244 electrical connection with PG9 connector option. Options & Temperature Guidance: Available with stainless steel armature tube, electroless nickel plating, Class H insulation, cable attached versions, special coil voltages, special coil powers and certified coils. Optional explosion proof coil according to ATEX - EExmII Series 7 is available subject to correct specification. Ambient temperature is listed as -10°C to +80°C according to the coil. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 204 brass normally open direct-acting solenoid valve is available to order, with delivery options confirmed at quotation, contact our team for technical advice or to request a quote.
