116

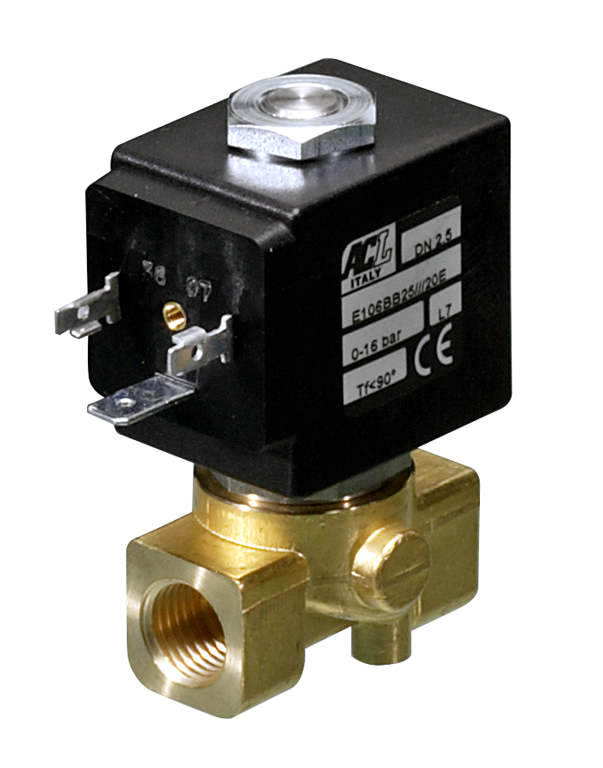

Series 116 Bi-Stable 2 Way Direct-Acting Solenoid Valve Ultravalve supplies the Series 116 2 way direct-acting poppet solenoid valve for automated on/off flow isolation in industrial applications. Featuring a bi-stable impulse drive and brass construction, it is designed for compatible general fluid-handling applications including water, air, inert gases, fuel gases, industrial automation, compressors and water treatment systems, subject to media, seal, pressure and certification compatibility. These valves provide energy efficient pulse-driven state changes without continuous coil energisation to maintain valve position. Dependable Bi-Stable Isolation for Industrial Automation Ultravalve’s Midlands based warehouse offers a wide range of Series 116 valves from stock, subject to configuration and current availability. Designed to support maintenance projects and industrial automation, these valves help provide fast replacement options for urgent pipework and general process requirements. Bi-Stable Impulse Operation: Uses a polarised permanent NeFeB magnet, with the bi-stable function achieved by energising the coil with a DC current for at least 15 ms in the reverse direction of the preceding impulse. Direct-Acting Performance: The direct-acting poppet design enables reliable on/off flow isolation from 0 bar minimum differential pressure. Defined Pressure Handling: Supports a maximum allowable pressure of PS 50 bar, with maximum differential operating pressure dependent on orifice size and configuration. The data table lists differential pressure ratings by orifice, subject to the valve’s stated PS limit and application suitability. Robust Brass Construction: Manufactured with a brass body, AISI 303 armature tube, AISI 430FR plunger and core, NeFeB magnet, and AISI 302 springs, with seal options including NBR, FPM or EPDM. Fluid Compatibility Guidance: Suitable for compatible industrial media with maximum fluid viscosity up to 25 cSt, subject to material, pressure, seal and certification compatibility. Flexible Integration: Features multiple connection sizes: G1/8, G1/4, G3/8 and G1/2 ISO 228 threaded fluid connections for straightforward integration into compatible pipework. Electrical Connection & Protection: Uses a DIN 43650A PG9 connector, with IP65 protection when the connector is fitted and IP00 without connector. Mounting Flexibility: Suitable for universal mounting positions, as stated in the product data sheet. Options: Available with electroless nickel plating, stainless steel seat insert up to Ø4.5, Class H insulation, cable attached, special coil voltages and special coil powers. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 116 bi-stable direct-acting solenoid valve is available to order, with delivery options confirmed at quotation, contact our team for technical advice or to request a quote.
