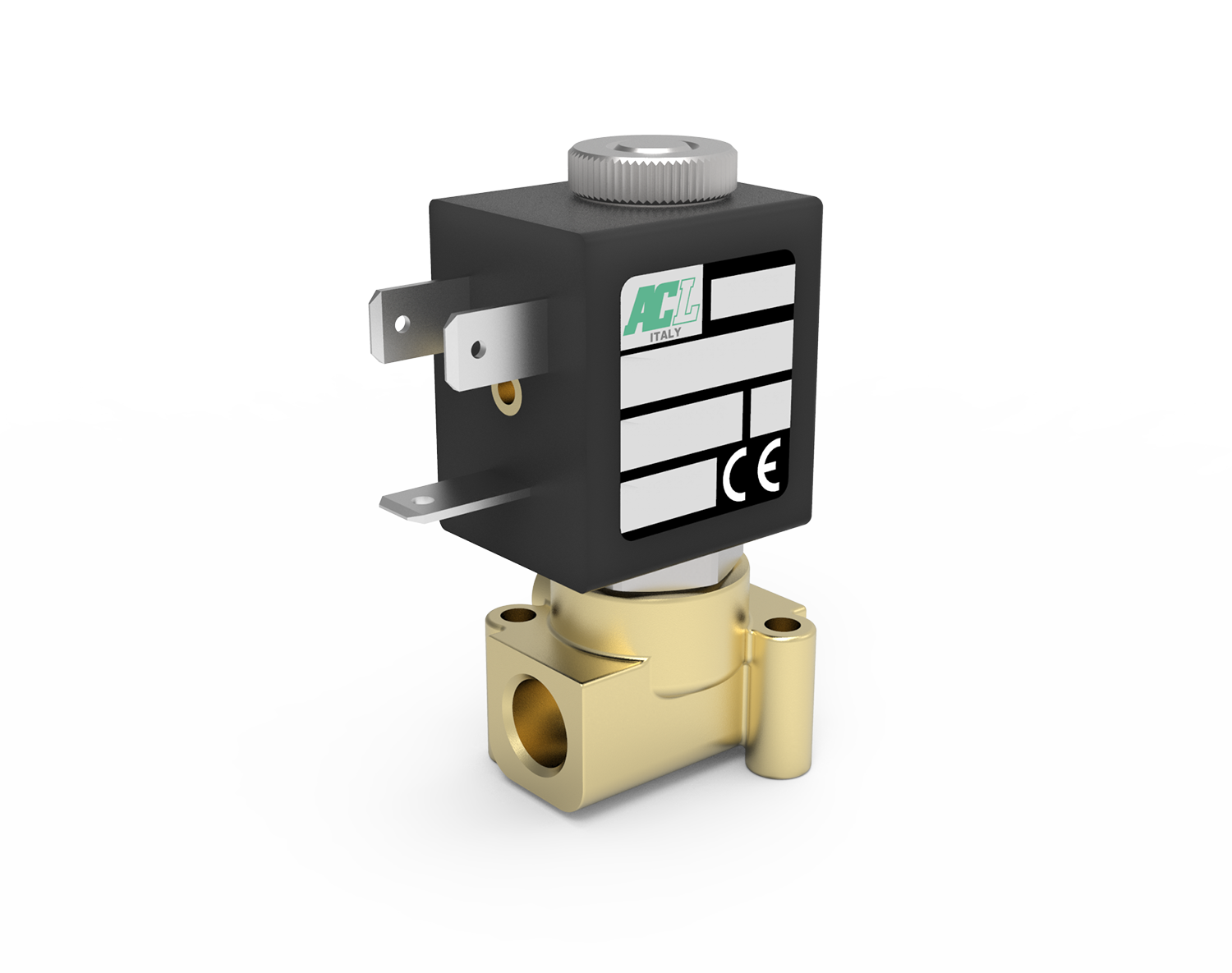

Series 105 2 Way Normally Closed Direct Acting Solenoid Valve Ultravalve supplies the Series 105 2 way normally closed direct-acting poppet solenoid valve for automated on/off flow isolation in industrial systems. Featuring a robust brass body and multiple seal options, it is designed for compatible general fluid-handling applications requiring reliable flow control from 0 bar differential pressure. Dependable Direct-Acting Flow Isolation in Brass Ultravalve’s Midlands based warehouse offers a wide range of Series 105 valves from stock, subject to configuration and current availability. Designed to support maintenance projects and system upgrades, these valves help provide fast replacement options for urgent pipework and general process requirements. Direct-Acting Performance: The direct-acting poppet design enables reliable on/off flow isolation from 0 bar minimum differential pressure. Defined Pressure Handling: Supports a maximum allowable pressure of PS 50 bar, with maximum differential operating pressure dependent on orifice size and coil selection, reaching up to 25 bar on selected configurations. For steam applications, the maximum allowable pressure is PS 2.5 bar gauge. Robust Brass Construction: Manufactured with a brass body, brass armature tube, AISI 430FR plunger and core, and AISI 302 springs, with seal options in NBR, FPM or EPDM. Fluid Compatibility Guidance: Suitable for compatible media with maximum fluid viscosity up to 25 cSt, subject to material and seal compatibility. Continuous Duty Operation: Rated for ED100% continuous service, supporting reliable continuous coil energisation in suitable industrial applications. Flexible Integration: Features a compact G1/8 ISO 228 threaded fluid connection for straightforward installation into compatible systems. Environmental Protection: Offers IP65 protection with connector fitted and IP00 without connector. Mounting Flexibility: Suitable for universal mounting positions, as stated in the product data sheet. Optional ATEX Coil: Available with a Series 7 explosion-proof coil according to ATEX EExmII for suitable hazardous area configurations, subject to specification. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 105 brass direct-acting solenoid valve is available to order, with delivery options confirmed at quotation, contact our team for technical advice or to request a quote.
