Series 420

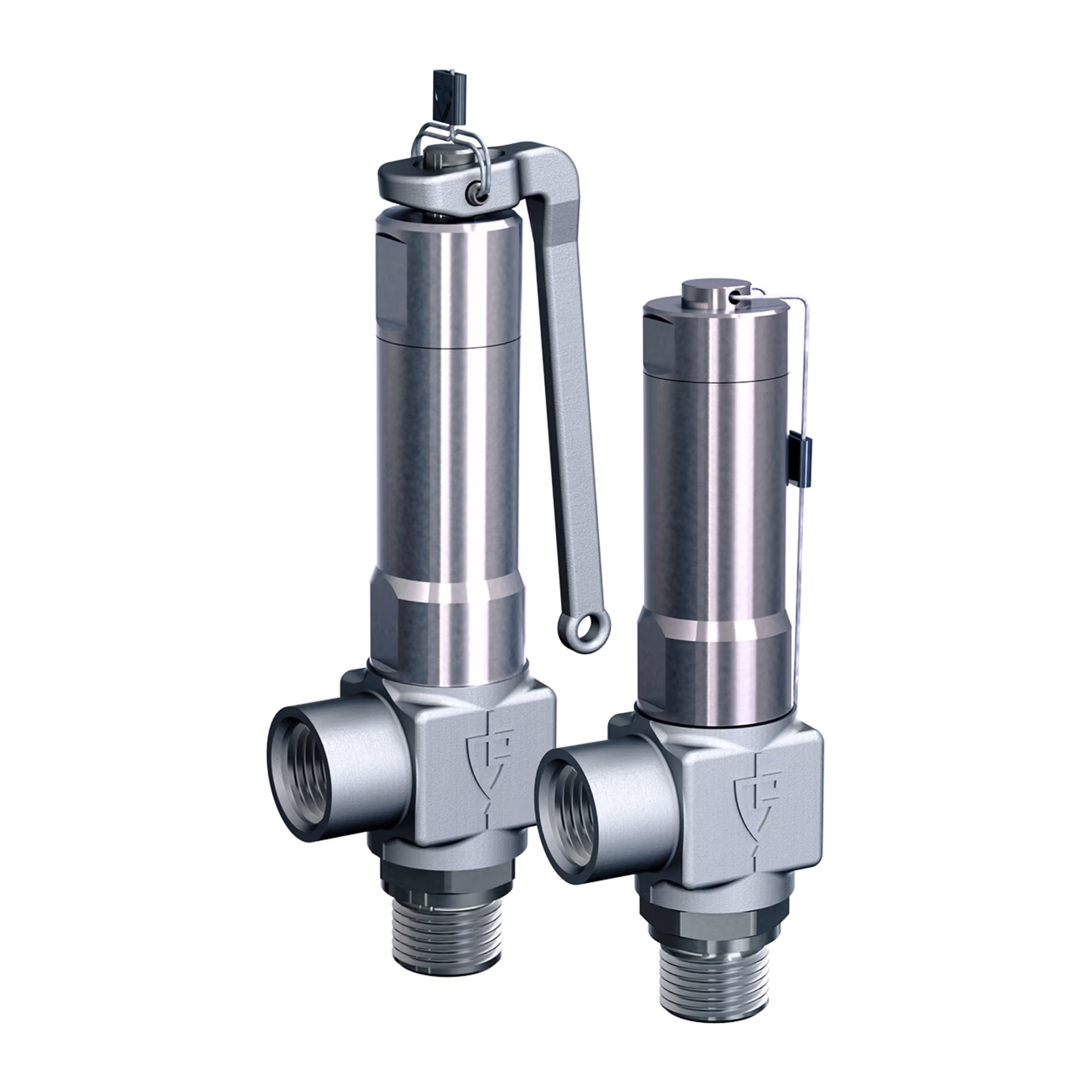

Goetze Series 420 Stainless Steel Safety Valve – Threaded Angle Pattern
Connection Type:
Internal Pipe Thread
,
Male Thread
,
Working Pressure:
0.5 - 50 bar
,
Body Material:
Stainless Steel
,
Product Design:
Angle Type
Working Temperature:
-40°C to +260°C
The Goetze Series 420 is a compact, type-tested stainless steel safety valve designed for reliable overpressure protection in industrial systems. Manufactured from 316L stainless steel, this angle-pattern valve is suitable for steam, gases, vapours and both neutral and non-neutral liquids. It is factory set and sealed, ensuring tamper-proof performance and compliance with PED 2014/68/EU and DIN EN ISO 4126-1. Optional gastight and bellows versions allow safe handling of hazardous or environmentally sensitive media. Typical applications include chemical processing plants, biogas systems, marine installations, desalination plants, OEM process equipment and secondary areas within food, pharmaceutical and cosmetics industries.
