BA300

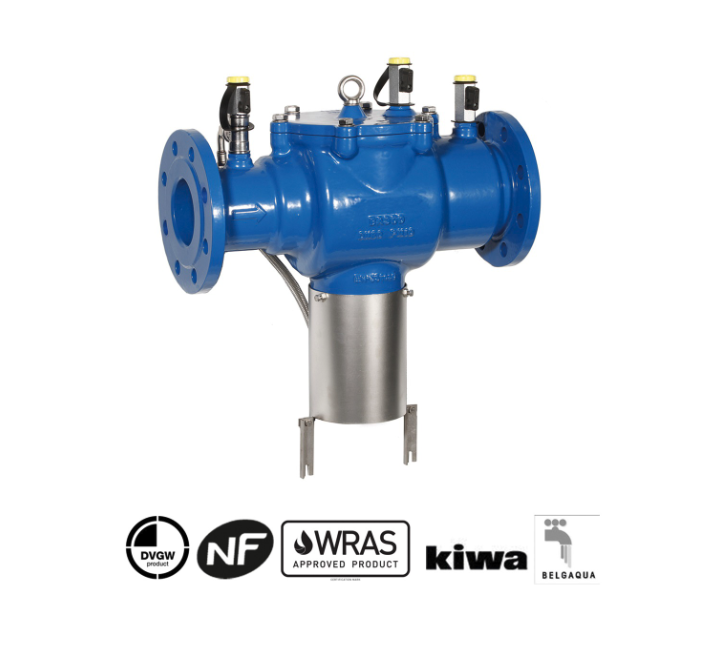

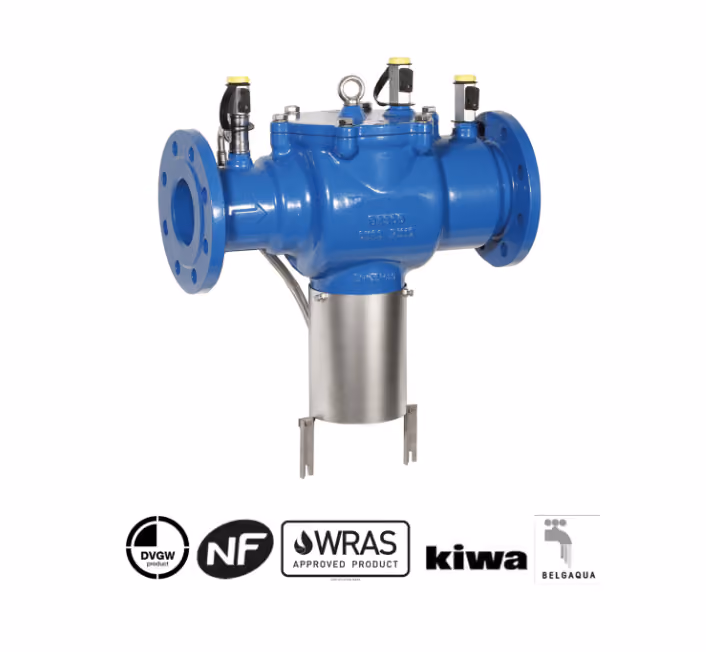

Honeywell (Resideo) BA300 High Capacity Flanged RPZ Valve for Large Pipework Sizes
Working Temperature:
Max 65°C
Body Material:
Ductile Iron (Powder Coated)
Working Pressure:
PN10
Connection Type:
Flange
Key Features & Benefits:
Municipal Grade Capacity: available in large diameters up to DN200 to handle the highest system flow rates while maintaining low pressure loss.
Heavy Duty Construction: features a robust ductile iron housing with a protective powder coating, paired with a highly durable stainless steel discharge valve.
Complete Network Security: operates using a fail-safe three-zone system (two check valves and a discharge valve) to guarantee absolute protection against contamination.
Certified Compliance: approved by DVGW, NF, KIWA, and BELGAQUA, and fully compliant with EN 1717 for category 4 liquid protection.
Streamlined In-Line Servicing: designed for easy internal access, allowing maintenance teams to service the valve without dismantling heavy large scale pipework.
When protecting major industrial facilities, municipal water mains and large commercial networks, flow capacity and structural integrity cannot be compromised. he Resideo Braukmann BA300 (widely recognised as the Honeywell BA300) is an ultra heavy duty flanged RPZ valve (backflow preventer) engineered specifically to safeguard high volume drinking water systems against back pressure, backflow and back syphonage. Constructed with a rugged, powder coated ductile iron housing, the BA300 delivers unshakeable reliability in demanding environments. It is fully approved to EN 12729 standards and guarantees compliance with EN 1717, protecting water networks up to liquid category 4. Dealing with large diameter pipework (up to DN200) traditionally means maintenance is a highly disruptive and labor intensive process. The BA300 solves this by incorporating an integrated inlet strainer and an accessible triple-security valve system. This intelligent design allows process engineers to inspect, service and maintain internal components directly in-line, completely removing the need to unbolt the massive valve body from the primary flanges.
