BA298I-F

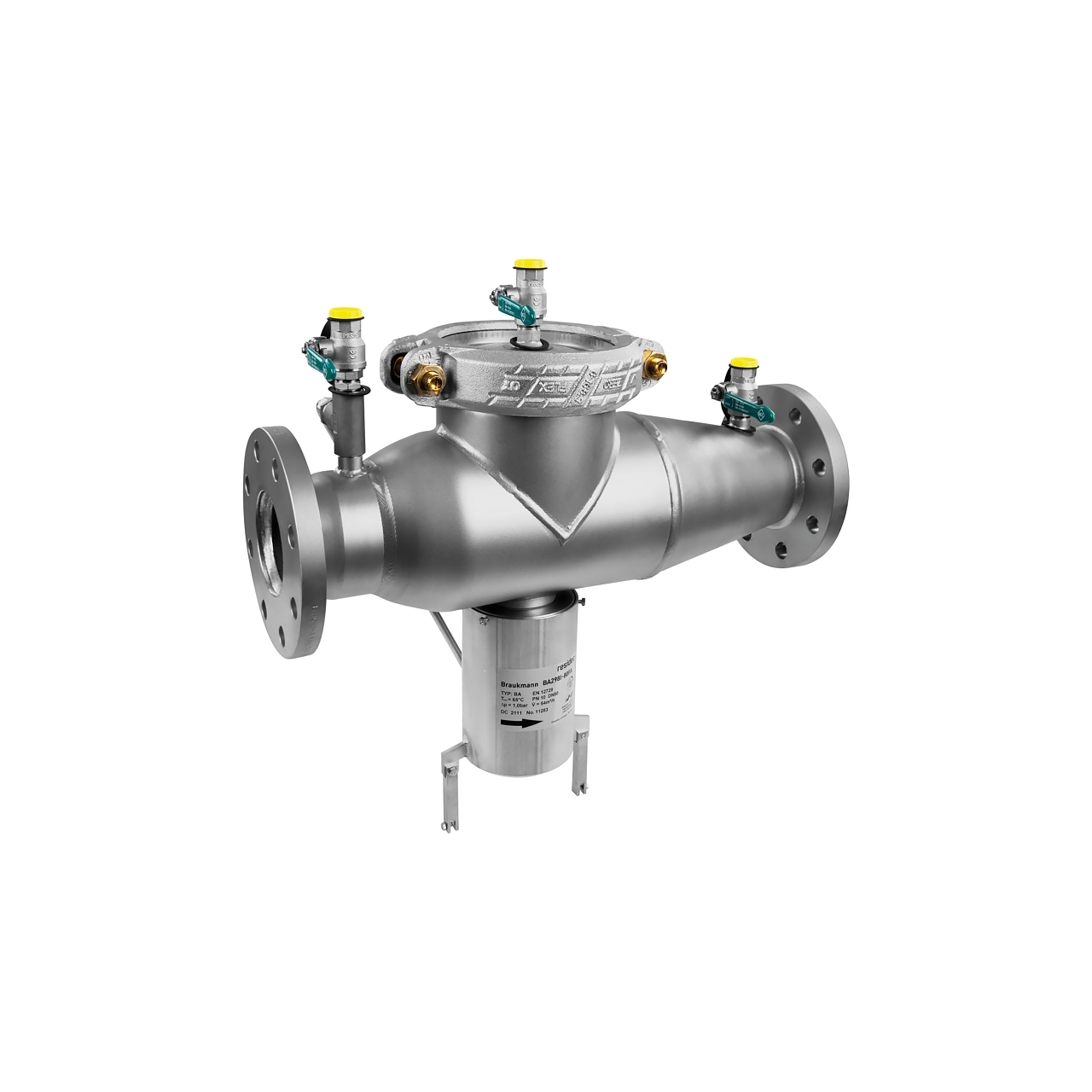

Honeywell (Resideo) BA298I-F Stainless Steel Flanged RPZ Valve for Industrial Networks (Backflow Preventer)
Working Temperature:
Max 65°C
Body Material:
Stainless Steel
Working Pressure:
PN10
Connection Type:
Flange
Key Features & Benefits:
Maximum Corrosion Resistance: the heavy duty housing and discharge valve are manufactured entirely from premium stainless steel for harsh or hygiene-critical process environments.
Complete Network Protection: features a triple-security system (incorporating two check valves and a discharge valve) to guarantee protection against backflow and syphonage.
Certified Compliance: approved to EN 12729 standards and protects drinking water up to liquid category 4 in accordance with EN 1717.
Streamlined Maintenance: the fully replaceable internal cartridge design allows for rapid, in-line servicing without dismantling the primary flanged pipework.
High Flow Efficiency: optimised internal geometry ensures high flow rates, prevents water stagnation and minimises pressure loss across large scale systems.
Securing high capacity and hygiene-critical water networks demands uncompromising flow control components. The Resideo Braukmann BA298I-F (formerly Honeywell) is a premium flanged RPZ valve, engineered with a robust stainless steel housing to act as the ultimate backflow preventer and protect commercial and industrial systems from contamination caused by back pressure, backflow and back syphonage. Fully compliant with EN 1717, it safely protects drinking water systems up to liquid category 4. By using a highly corrosion resistant stainless steel construction, the BA298I-F delivers exceptional longevity and safety in demanding environments where standard materials would degrade. For plant managers and maintenance teams, operational uptime is critical. The BA298I-F is designed with a combined check and discharge valve cartridge alongside an integrated inlet strainer. This allows engineers to perform full inspections, servicing and internal component replacements directly in-line, completely eliminating the need to remove the flanged valve body from the primary pipework.
