D16

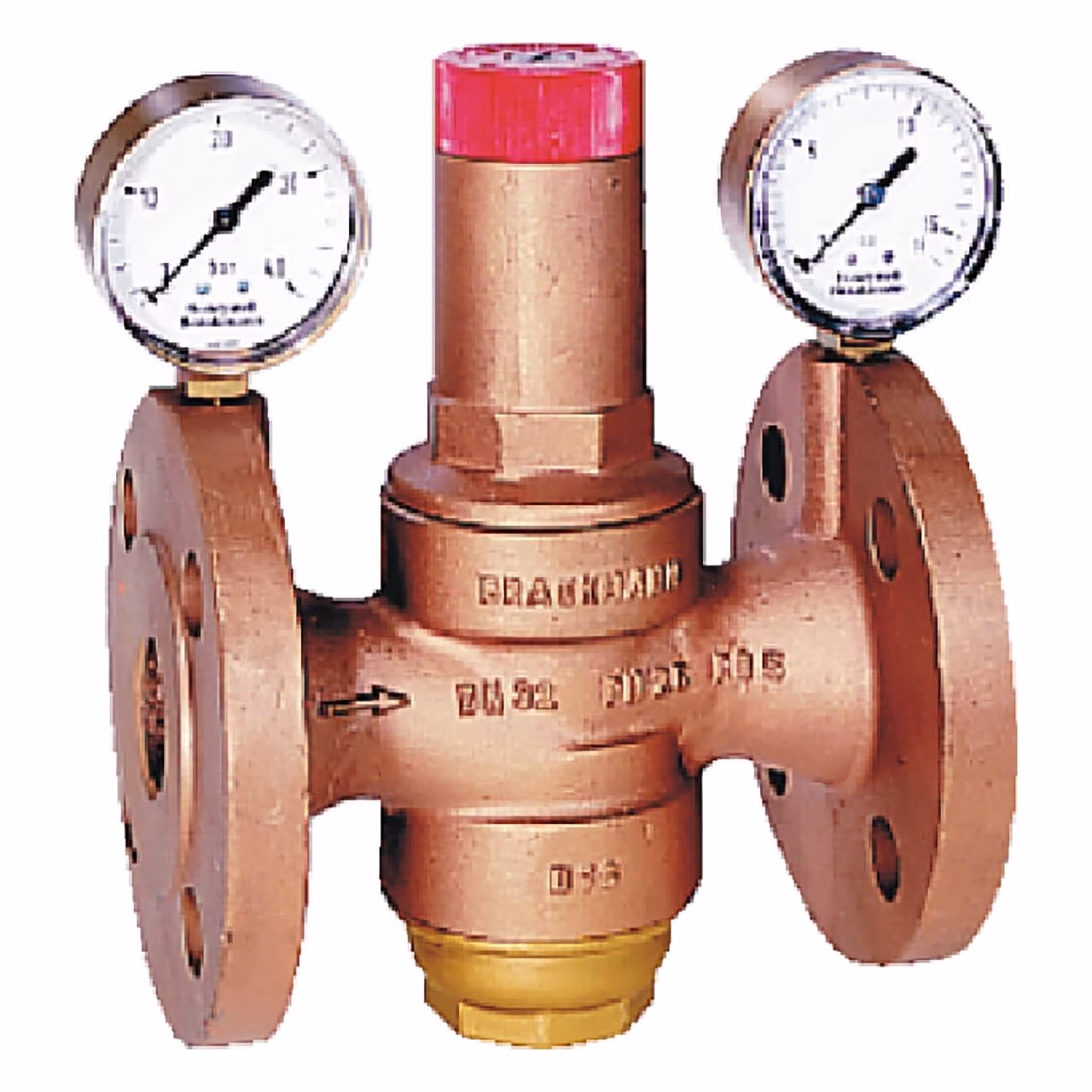

The Braukmann D16 pressure reducing valve is a compact and reliable solution designed to maintain consistent water pressure in domestic, commercial and light industrial systems. Featuring a flanged connection and standard pattern design, it ensures dependable performance and easy integration into pipework installations. Manufactured in accordance with EN 806-2, the D16 valve protects water systems from excessive supply pressure, preventing pressurisation damage and reducing water consumption. It maintains a constant outlet pressure even under fluctuating inlet conditions, helping to minimise flow noise and improve overall system efficiency. The valve incorporates inlet pressure balancing, ensuring that variations in supply pressure do not affect the downstream pressure setting. A high-quality, fully replaceable valve insert allows for straightforward maintenance and extended service life. The adjustment spring is isolated from the drinking water, supporting hygienic operation. Designed for ease of use, the outlet pressure can be adjusted via an external adjustment knob, and integrated G 1/4" pressure gauge connections on both inlet and outlet sides enable convenient system monitoring. Suitable for water applications, the Braukmann D16 operates at a maximum inlet pressure of 25 bar, with an adjustable outlet pressure range from 1.5 to 12 bar (preset to 4 bar). With a PN25 pressure rating and sizes from DN15 to DN40 (_" to 1_"), it is ideal for smaller systems requiring precise and reliable pressure control.
