D15SN

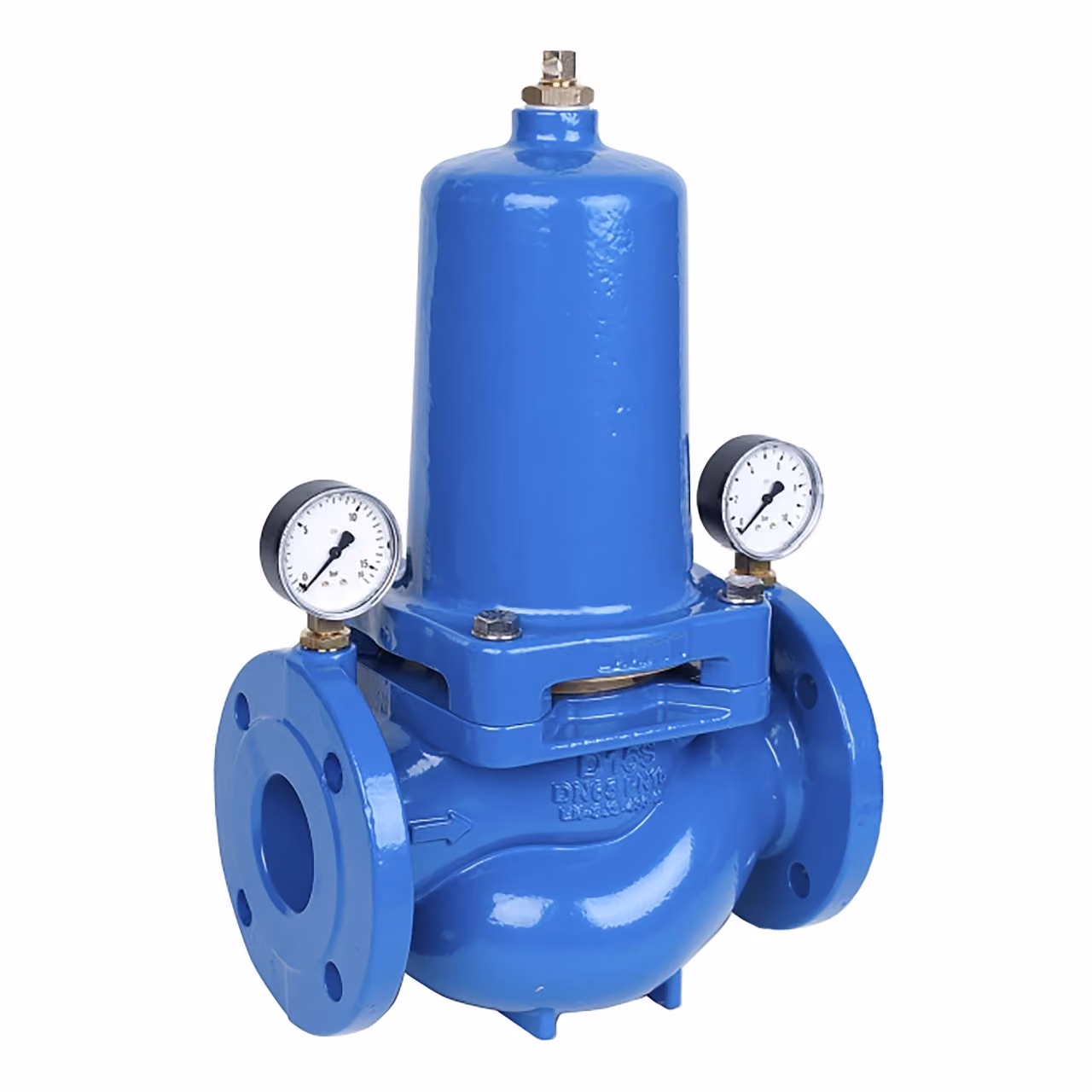

The Braukmann D15SN pressure reducing valve is a diaphragm-actuated solution designed for reliable pressure control in low-pressure water systems. Featuring a cartridge insert and low-pressure pattern design, it ensures consistent downstream pressure while protecting installations from excessive supply pressure. Manufactured in accordance with EN 806-2 and compliant with EN 1567 performance requirements, the D15SN is ideal for domestic, commercial and light industrial applications. It maintains a constant outlet pressure even under fluctuating inlet conditions, helping to prevent pressurisation damage, reduce water consumption and minimise flow noise within the system. The valve incorporates a patented cartridge design for easy installation, servicing and maintenance. Its stainless steel cartridge combined with a PA coating provides excellent corrosion resistance, ensuring long service life. The adjustment spring is isolated from the drinking water, supporting safe and hygienic operation. Certified to WRAS standards (up to 23°C) and compliant with UBA and ACS requirements, the D15SN is suitable for potable water applications. Its lead-free construction ensures all materials in contact with the medium contain less than 0.1% lead, meeting modern water safety standards. Available in sizes from DN50 to DN100 and rated to PN16, the Braukmann D15SN is a dependable solution for systems requiring stable pressure regulation under standard operating conditions.
