D06FN

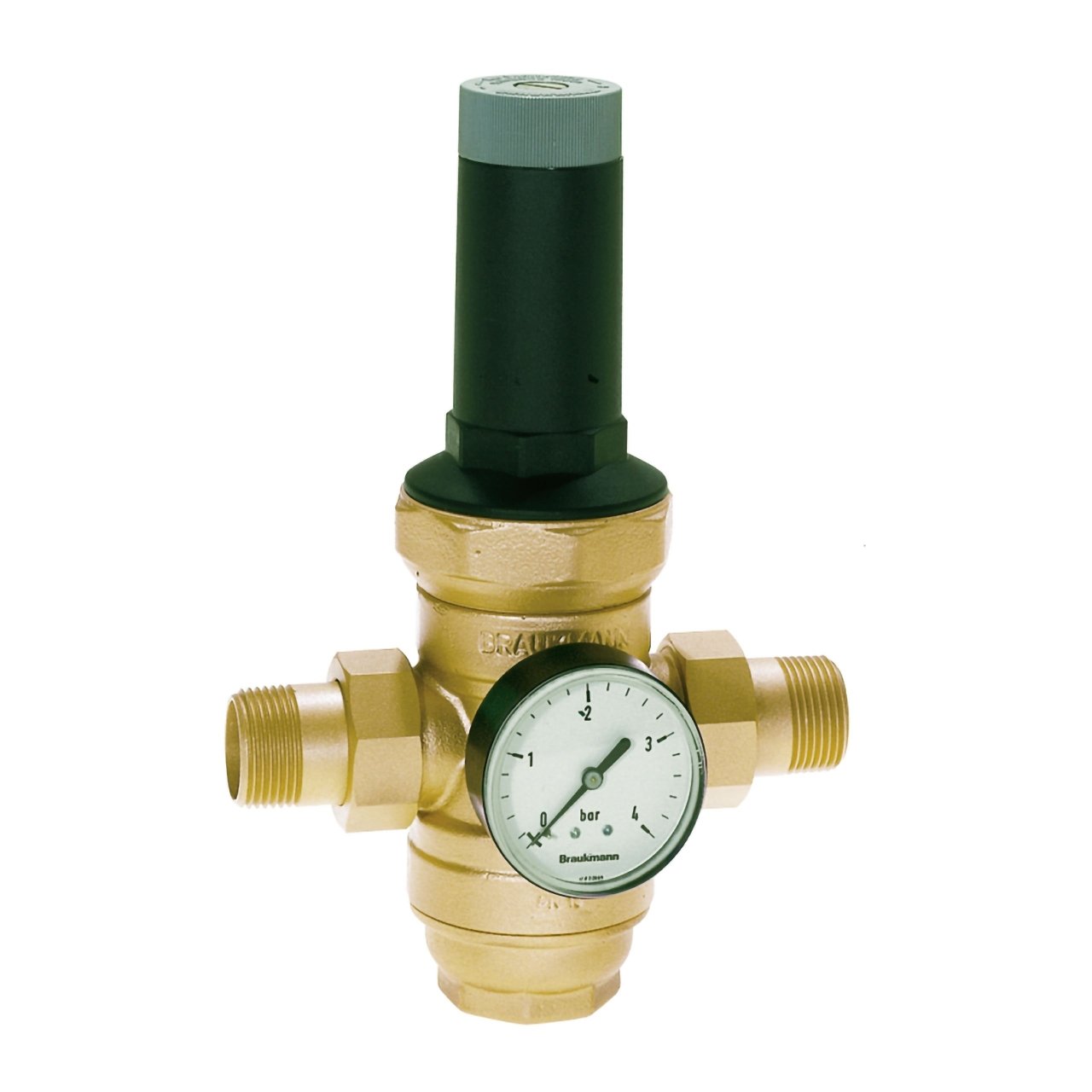

The Braukmann D06FN pressure reducing valve is a specialised low-pressure solution designed to deliver precise and stable pressure control in drinking water systems. Featuring a balanced seat design, integrated fine filter and set point scale, it ensures accurate adjustment and reliable long-term performance in low-pressure applications. Manufactured in accordance with EN 806-2, the D06FN protects installations from excessive supply pressure while maintaining a constant outlet pressure, even under fluctuating inlet conditions. This helps prevent pressurisation damage, reduce water consumption and minimise flow noise within the system. Specifically engineered for low-pressure environments, the valve offers an adjustable outlet pressure range from 0.5 to 2 bar (preset to 1.5 bar), making it ideal for sensitive systems requiring precise pressure control. The valve includes inlet pressure balancing to ensure consistent downstream performance. The outlet pressure is easily set using an external adjustment knob, with the selected pressure clearly displayed on the integrated scale for accurate control. An integral fine filter protects internal components and downstream equipment from debris, improving reliability and extending service life. The high-quality synthetic valve insert is fully replaceable, allowing for easy maintenance, while the adjustment spring is isolated from the drinking water to ensure hygienic operation. Additional flexibility is provided through retrofit options, including conversion to a reverse-rinsing filter combination or the addition of an inlet check valve. Available in sizes from DN15 to DN50 (_" to 2"), the Braukmann D06FN is ideal for domestic and commercial systems requiring dependable low-pressure regulation.
