D06FH

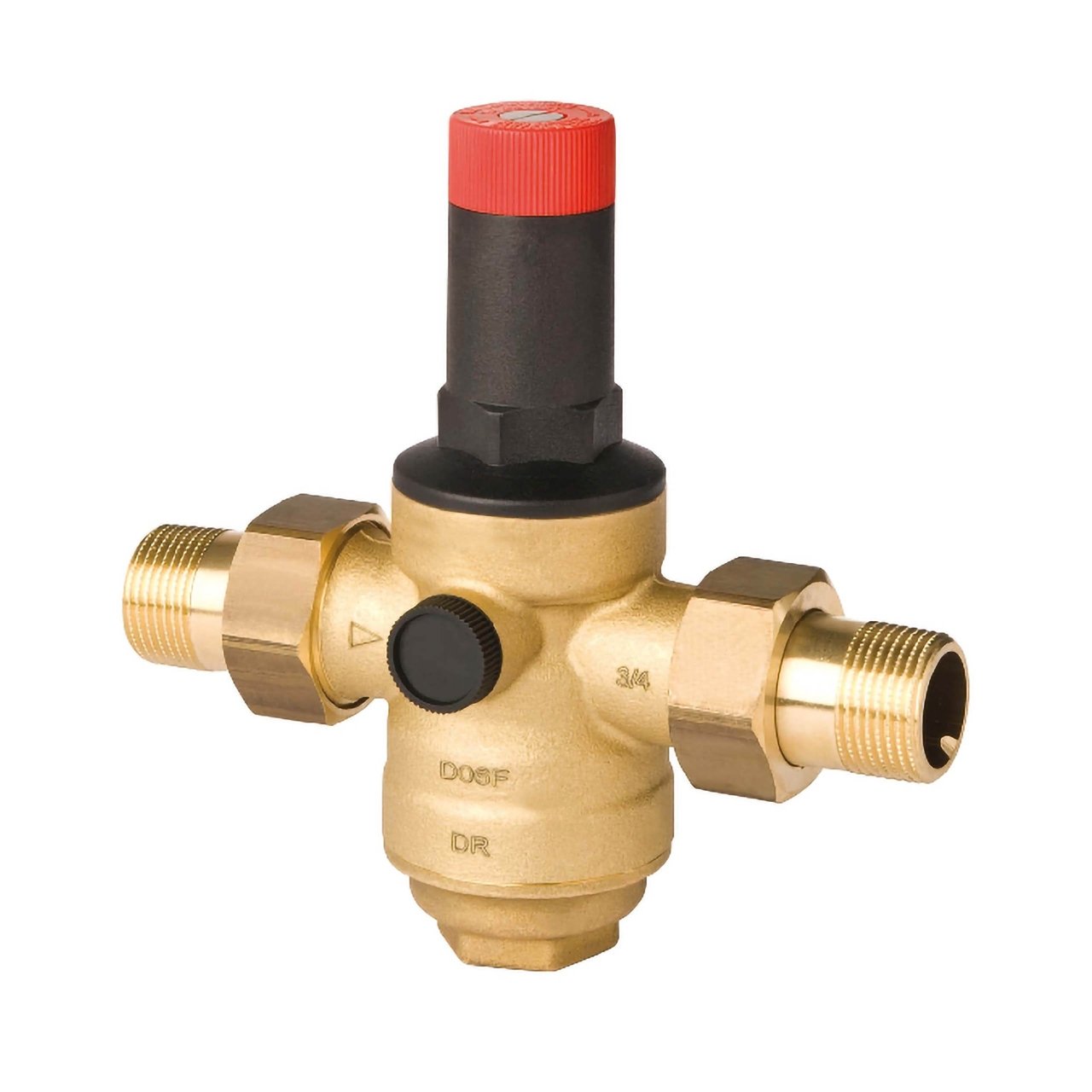

The Braukmann D06FH pressure reducing valve is a high-pressure solution designed to provide precise and reliable pressure control in drinking water systems. Featuring a balanced seat design, integrated fine filter and set point scale, it ensures stable downstream pressure while protecting installations from excessive supply pressure. Manufactured in accordance with EN 806-2, the D06FH helps prevent pressurisation damage, reduce water consumption and minimise flow noise. It maintains a constant outlet pressure even when inlet pressure fluctuates, ensuring consistent system performance across domestic, commercial and light industrial applications. Designed for high-pressure environments, the valve supports inlet pressures up to 25 bar and offers an adjustable outlet pressure range from 1.5 to 12 bar (preset to 5 bar). The outlet pressure can be easily set using an external adjustment knob, with the selected pressure clearly displayed on the integrated scale. The valve includes an integral fine filter to protect internal components and downstream equipment from debris, improving reliability and extending service life. The high-quality synthetic valve insert is fully replaceable, allowing for easy maintenance. The adjustment spring is isolated from the drinking water, ensuring hygienic operation. Additional flexibility is provided through retrofit options, including the ability to convert the valve into a reverse-rinsing filter combination or add an inlet check valve. Selected sizes are also approved for low-noise operation, ensuring quiet performance in sensitive environments. Available in sizes from 1/2" to 2", the Braukmann D06FH is suitable for a wide range of installations requiring high-pressure capability and dependable control.
