D06F

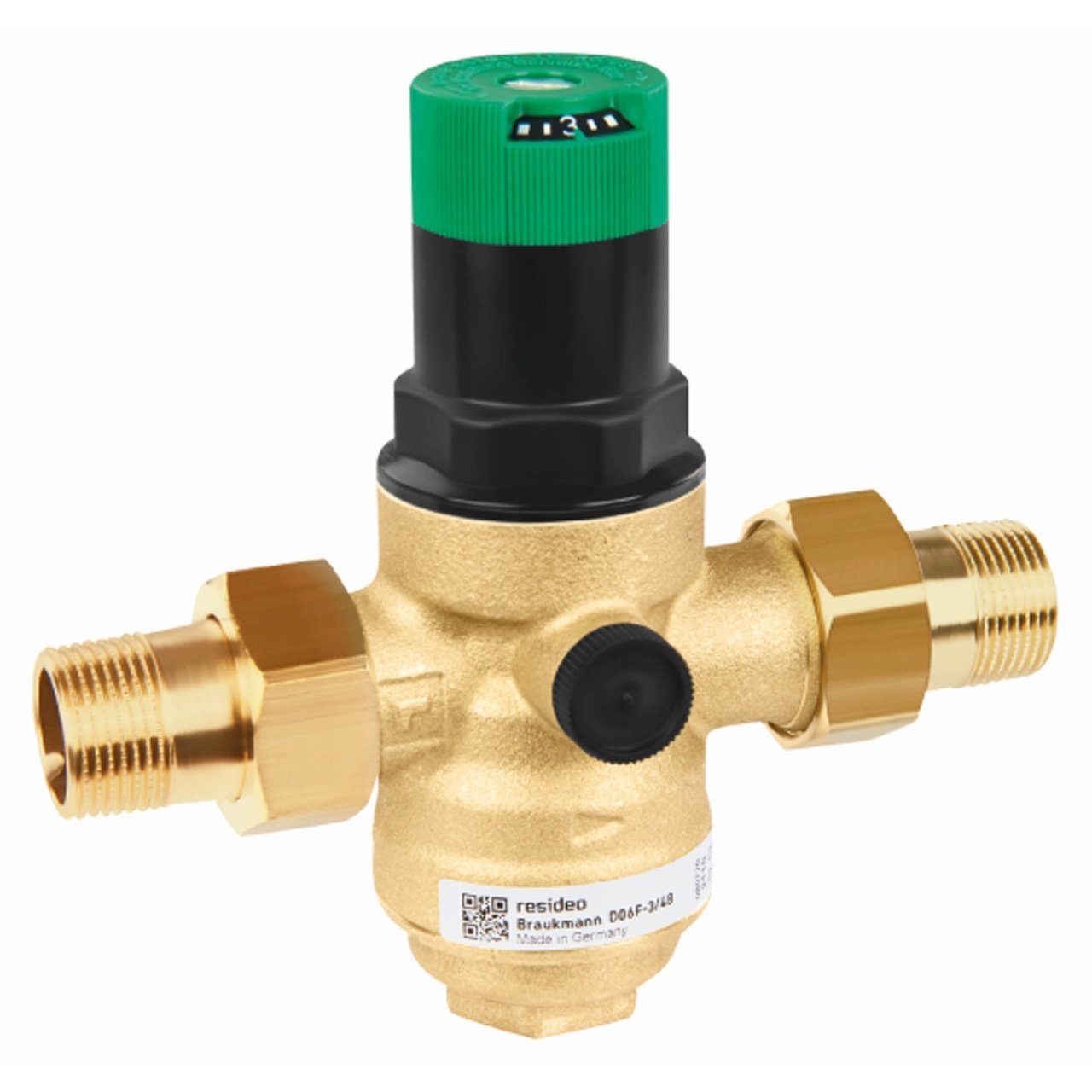

The Braukmann D06F pressure reducing valve is a high-performance solution designed to deliver consistent and reliable pressure control in drinking water systems. Featuring a balanced seat design, integrated fine filter and set point scale, it ensures precise adjustment and dependable long-term operation. Manufactured in accordance with EN 806-2 and compliant with BS EN 1567, the D06F protects installations from excessive supply pressure, helping to prevent pressurisation damage, reduce water consumption and minimise flow noise. The valve maintains a constant outlet pressure even when inlet pressure fluctuates, thanks to its inlet pressure balancing feature. The outlet pressure can be easily adjusted using an external knob, with the set pressure clearly displayed on the integrated scale for accurate control. An integral fine filter helps protect the valve and downstream components from debris, improving reliability and extending service life. The high-quality, replaceable valve insert allows for straightforward maintenance, while the adjustment spring is isolated from the drinking water to ensure hygienic operation. Approved by DVGW and WRAS (up to 23°C), and manufactured using UBA conform and ACS certified materials, the D06F is suitable for potable water applications. It is also designed for low-noise operation, with selected sizes approved by LGA. Available in sizes from DN15 to DN50 (_" to 2"), the valve supports a maximum inlet pressure of up to 16 bar with a clear filter bowl or up to 25 bar with a brass filter bowl. The outlet pressure is adjustable from 1.5 to 6 bar (preset to 3 bar), making it suitable for a wide range of domestic and commercial systems.
