11BIS

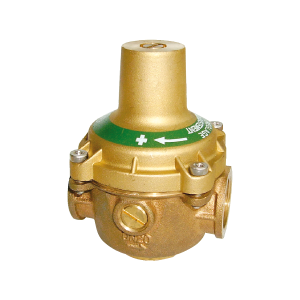

11 BIS Flats and House Individual Water Supply Valve
Working Pressure:
PN25
Body Material:
Bronze
Connection Type:
Female Thread / Female Thread
Working Temperature:
0°C to 80°C
This pressure reducing valve is designed for consistent and reliable control in water distribution systems, with a maximum upstream pressure of 25 bar and an operating temperature up to 80°C. It offers an adjustable downstream pressure range from 1 to 5.5 bar in accordance with EN1567 standards and is pre-set at 3 bar for ease of installation.
A compensating spring can be fitted to achieve settings as low as 0.5 bar where required. The valve includes 1/4" plugs on both sides to allow for easy pressure gauge connection during monitoring or maintenance. It features a durable bronze casing with a stainless steel seat for DN 15 and 20 sizes and is designed with female threaded connections on both ends for straightforward installation.
