10BIS

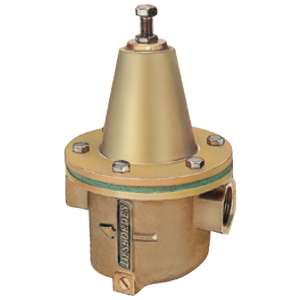

10 BIS Water Distribution Valve
Working Pressure:
PN25
Body Material:
Bronze
Connection Type:
Female Thread / Female Thread
Working Temperature:
0°C to 80°C
The 10 BIS water distribution valve is designed for reliable pressure control in water systems with a maximum upstream pressure of 25 bar and an operating temperature up to 80°C. It features 1/4" plugs on both sides allowing easy connection of pressure gauges for monitoring and maintenance.
The valve offers adjustable pressure settings ranging from 1 to 6 bar in accordance with EN1567 standards and comes pre-set at 3 bar for convenience. A compensating spring can be installed excluding the 4" size to enable settings as low as 0.5 bar. Constructed with a durable bronze casing the 10 BIS valve ensures long-lasting performance and reliability in a variety of water distribution applications.
