GEMÜ 537

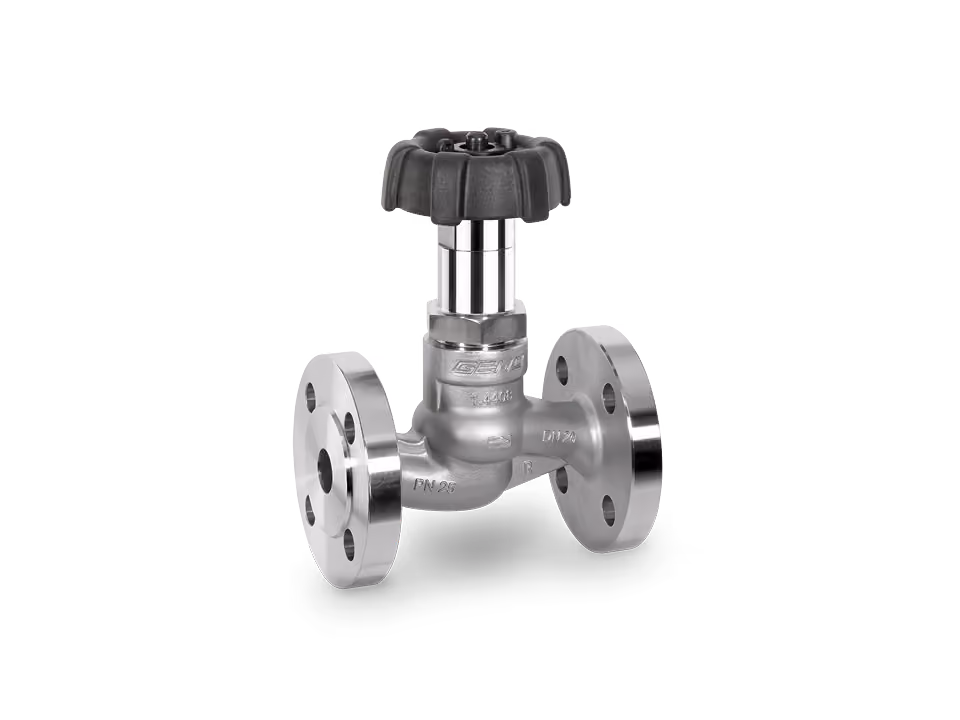

The GEMÜ 537 manually operated 2/2-way globe valve provides continuous flow regulation for industrial applications operating up to 40 bar. The GEMÜ 537 uses an ergonomically designed plastic handwheel and maintains system integrity during vacuum applications operating down to 20 mbar (a). Key Performance Capabilities: Flow Fixation: A dedicated handwheel locknut allows operators to fix the spindle position to maintain a continuous flow rate. System Adaptability: Plant engineers can retrofit the manual GEMÜ 537 valve housing with a pneumatic actuator for future system upgrades. Extended Pressures: The GEMÜ 537 globe valve accommodates extended pressure stage ranges operating up to PN 40. Vacuum Capability: The GEMÜ 537 valve housing maintains system integrity during vacuum applications operating down to 20 mbar (a). Safety & Compliance: Contamination Protection: A dedicated wiper ring positioned before the gland packing protects internal seals from abrasive process media and external contamination. Insulation Integration: An optional handwheel extension enables maintenance teams to install the GEMÜ 537 valve within insulated pipeline systems. Industry Certifications: The GEMÜ 537 globe valve holds CRN, EAC, FDA, TA Luft and USP conformities. Regulatory Compliance: The GEMÜ 537 meets Regulation (EC) No. 1935/2004 and Reg. (EU) No. 10/2011 requirements for specific material configurations. Note: Operational media temperature ranges depend strictly on the specific seat and seal materials selected for the valve configuration.
