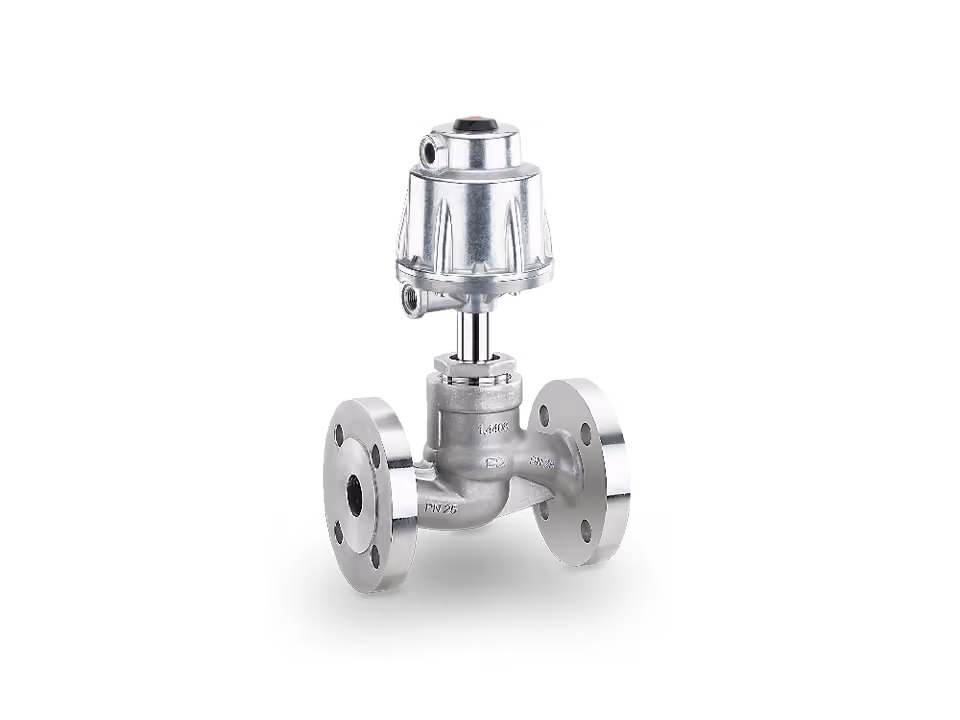

GEMÜ 532

The GEMÜ 532 pneumatically operated 2/2-way globe valve provides precise flow regulation for industrial applications operating up to 40 bar. The GEMÜ 532 uses an aluminium piston actuator and features a self adjusting gland packing to maintain system integrity during vacuum applications operating down to 20 mbar (a). Key Performance Capabilities: Flow Regulation: The GEMÜ 532 globe valve configures as a shut-off or control valve to accommodate specific system flow requirements. Spindle Sealing: The self adjusting gland packing provides continuous spindle sealing to eliminate manual maintenance requirements during extended operational lifespans. Vacuum Capability: The GEMÜ 532 valve housing maintains system integrity during vacuum applications operating down to 20 mbar (a). Actuator Integration: A dedicated union nut fixing enables plant engineers to rotate the aluminium actuator or execute fast actuator replacements. Safety & Compliance: Contamination Protection: A dedicated wiper ring positioned before the gland packing protects internal seals from abrasive process media and external contamination. Industry Certifications: The GEMÜ 532 globe valve holds CRN, EAC, FDA, FMEDA and TA Luft conformities. Regulatory Compliance: The GEMÜ 532 meets Regulation (EC) No. 1935/2004 and Reg. (EU) No. 10/2011 requirements for specific material configurations. Note: Operational media temperature ranges depend strictly on the specific seat and seal materials selected for the valve configuration.
