GEMÜ 554

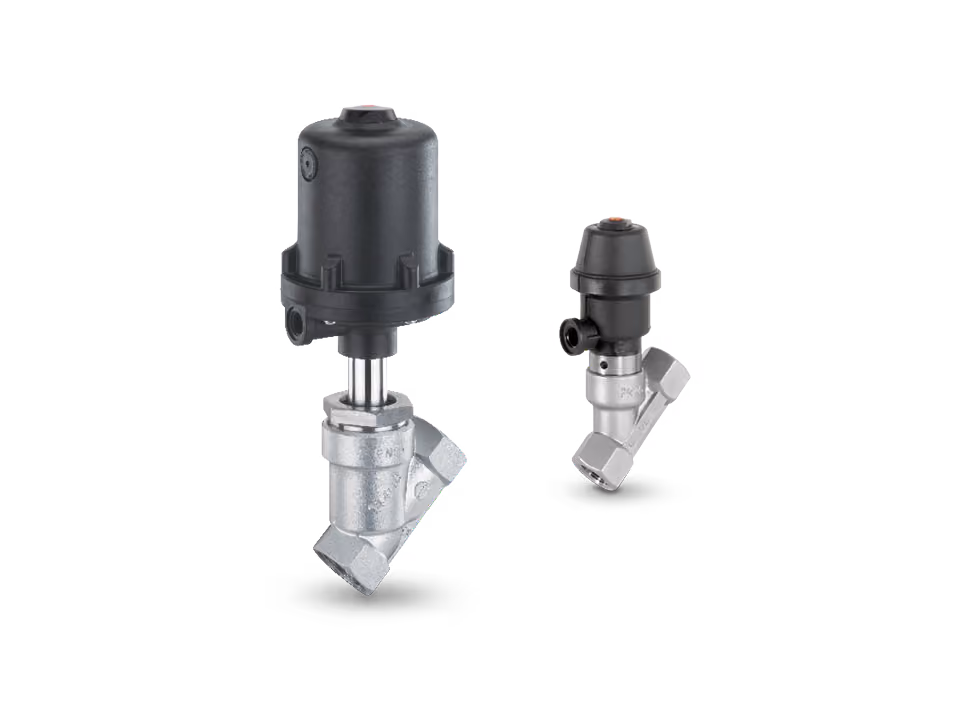

GEMÜ 554 Pneumatically Operated 2/2-Way Metal Angle Seat Globe Valve
Media Temperature:
-10°C to 180°C
Key Performance Capabilities:
Maintenance Reduction: The GEMÜ 554 uses a self adjusting gland packing and integrated wiper ring to protect the valve spindle from media debris, extending service intervals and reducing emergency maintenance costs.
System Efficiency: The GEMÜ 554 angle seat configuration provides higher Cv values than standard globe valves, allowing engineers to specify smaller actuator sizes to lower total system procurement spend.
Leakage Control: PTFE or PFA seat seals ensure the GEMÜ 554 achieves DIN EN 12266-1 leakage rate A, preventing medium loss and ensuring consistent process pressure stability for the end-user.
Hygienic Compliance: Specific GEMÜ 554 configurations adhere to Regulation (EC) No. 1935/2004, allowing for safe integration into food and beverage processing lines to meet strict UK safety standards.
The GEMÜ 554 pneumatically operated 2/2-way angle seat valve regulates corrosive, gaseous and liquid media at operating pressures up to 25 bar. The GEMÜ 554 features a 316L stainless steel body and PTFE seat seals, facilitating high cycle flow control across a temperature range of -10°C to 180°C in industrial processing systems. Safety & Compliance: Explosive Atmosphere Safety: The GEMÜ 554 is available with ATEX certification upon request to ensure safe operation in zones requiring spark protection and hazardous area compliance. Defined Fail-Safe States: The GEMÜ 554 pneumatic actuator supports Normally Closed (NC) and Normally Open (NO) functions to guarantee a secure valve position during a total loss of control air. Pressure Integrity: Every GEMÜ 554 valve undergoes hydrostatic testing to guarantee performance at a maximum permissible viscosity of $600 mm^{2}/s$, eliminating the risk of premature component failure. Note: Operational media temperature ranges and maximum permissible operating pressures depend strictly on the specific seat seal materials and body configuration selected for the GEMÜ 554.
