SMALL 304 NBR

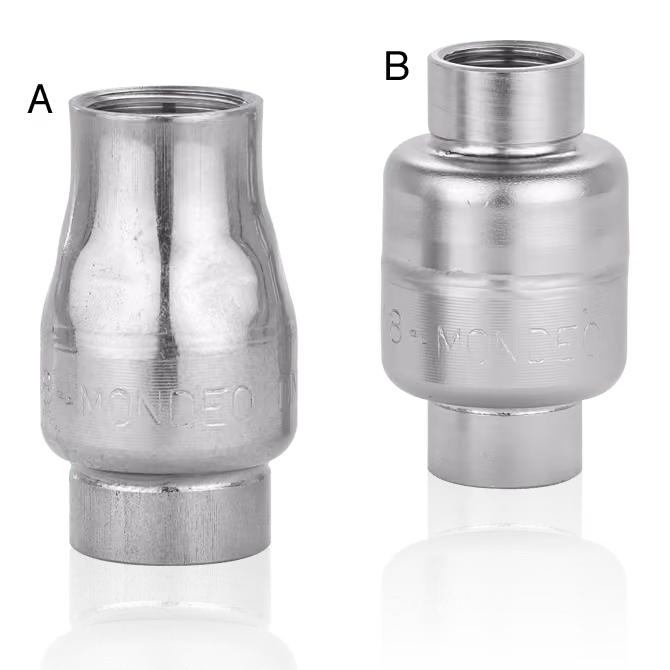

SMALL 304 NBR Pressed Stainless Steel Check Valve
Working Temperature:
-25°C to 90°C
Nominal Pressure:
PN16
,
Body Material:
Stainless Steel (1.4301)
,
Connection Type:
Threaded
,
Tags:
WRAS Approved
,
Key Performance Capabilities:
TIG Welded Structural Integrity: The SMALL 304 NBR uses Tungsten Inert Gas welding without additional filler material, preventing microscopic weld degradation and eliminating unplanned maintenance downtime across pressurised fluid networks.
Low Pressure Flow Activation: The SMALL 304 NBR guarantees a mechanical opening pressure between 0.025 bar and 0.035 bar, ensuring immediate media passage in low pressure systems to reduce energy expenditure for industrial pumping equipment.
The SMALL 304 NBR pressed stainless steel check valve delivers unidirectional flow control for compact industrial fluid lines. The SMALL 304 NBR accommodates nominal sizes from DN 08 to DN 15, regulates operating pressures up to 16 bar, and withstands media temperatures ranging from -25°C to 90°C. Safety & Compliance: Leakage Prevention Validation: The SMALL 304 NBR undergoes a strict hydraulic seal ring test using compressed air at 0.2 bar, guaranteeing structural integrity to prevent hazardous environmental spills and ensure facility safety. Note: The maximum operational media temperature and pressure ranges depend strictly on the specific check valve configuration and selected seal material for the SMALL variant.
