IDRJA 304 FPM

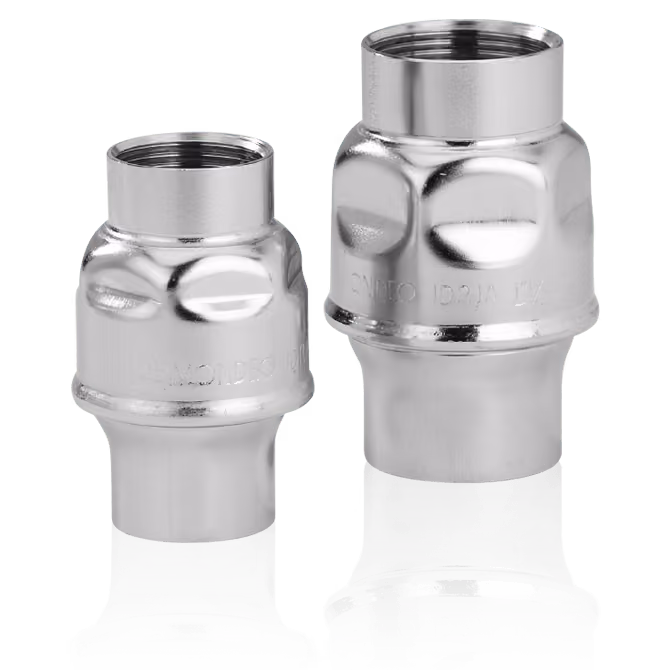

IDRJA 304 FPM Pressed Stainless Steel Check Valve
Working Temperature:
-20°C to 150°C
Nominal Pressure:
PN16
,
Body Material:
Stainless Steel (1.4301)
,
Connection Type:
Threaded
,
Tags:
WRAS Approved
,
Key Performance Capabilities:
TIG Welded Structural Integrity: The IDRJA 304 FPM utilises Tungsten Inert Gas welding without additional filler material, preventing microscopic weld degradation and eliminating unplanned maintenance downtime across pressurised fluid networks.
FPM High Temperature Sealing: The IDRJA 304 FPM integrates a fluorocarbon elastomer seal ring, preventing media leakage during thermal fluctuations to lower long term replacement costs in demanding industrial process lines.
The IDRJA 304 FPM pressed stainless steel check valve provides unidirectional flow isolation for aggressive high temperature media. The IDRJA 304 FPM accommodates nominal sizes from DN 20 to DN 65, withstands operating pressures up to 16 bar, and regulates media temperatures ranging from -20°C to 150°C. Safety & Compliance: Italian Potable Water Conformity: The IDRJA 304 FPM holds official DM 174 certification, guaranteeing material safety for integration within human consumption water networks to prevent facility compliance penalties. Note: The maximum operational media temperature and pressure ranges depend strictly on the specific check valve configuration and selected seal material for the IDRJA.
