H2448 316 FPM

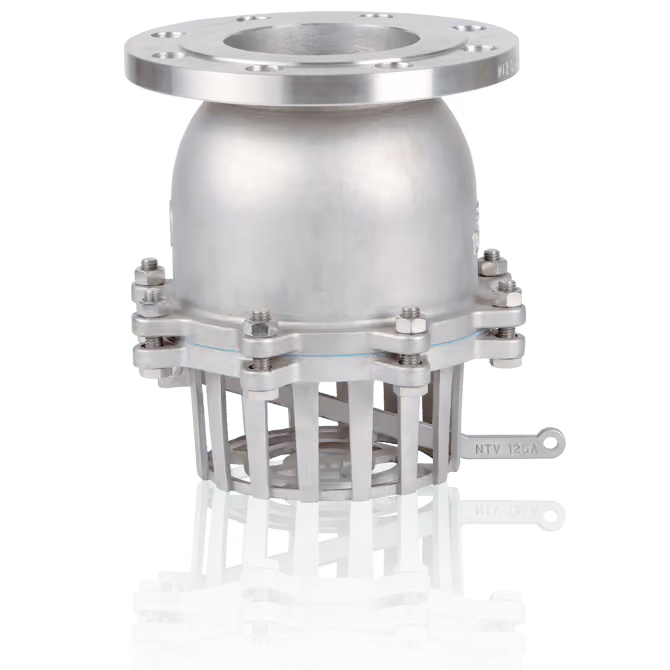

H2448 AISI 316 Flanged Foot Check Valve
Working Temperature:
-30°C to 180°C
Nominal Pressure:
PN16
,
Body Material:
Stainless Steel (1.4401)
,
Connection Type:
Flange
,
Key Performance Capabilities:
Manual System Evacuation: The H2448 foot check valve integrates a manual drainage system operated by an AISI 316 stainless steel handwheel, enabling controlled pipeline depressurisation to eliminate hazardous fluid exposure during scheduled maintenance.
Integrated Media Filtration: The H2448 check valve features a built-in AISI 316 stainless steel strainer, preventing debris ingress into suction lines to protect downstream pumps from mechanical damage and reduce costly equipment replacement.
Dual Seal Containment: The H2448 foot valve uses an FPM primary seal combined with a PTFE gasket, ensuring rigorous internal and external media containment across severe thermal shifts up to +180°C to prevent hazardous suction line leaks.
The H2448 flanged foot check valve provides unidirectional fluid isolation and filtration for suction pipelines requiring rigorous media containment. The H2448 accommodates nominal sizes from DN 50 to DN 200, regulates maximum operating pressures up to 16 bar, and withstands continuous media temperatures ranging from -30°C to +180°C. Safety & Compliance: Flange Connection Standardisation: The H2448 foot check valve incorporates flanged ends compliant with the DIN 2501 PN-16 specification, ensuring standardised integration into established UK pump suction architectures to minimise installation labour and prevent connection failure. Note: The maximum operational media temperature and pressure ranges depend strictly on the specific valve configuration and selected connection standard for the H2448 check valve.
