H2406 316 FPM

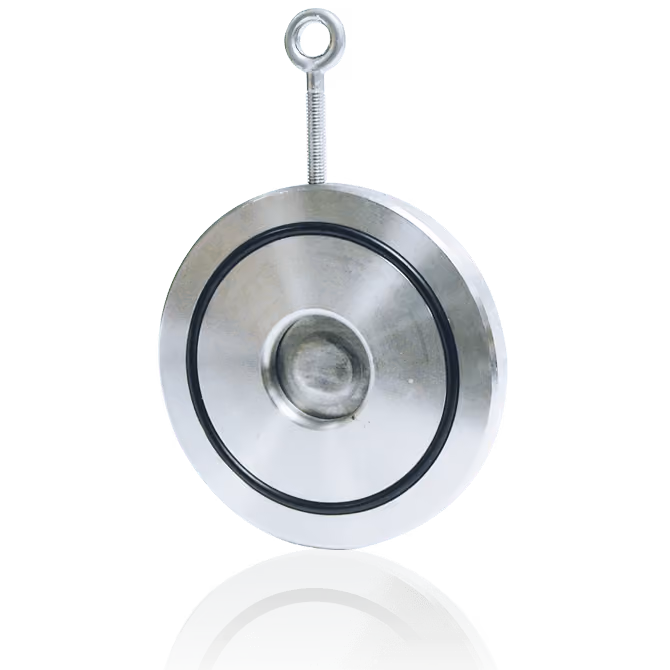

H2406 Wafer Swing Check Valve
Working Temperature:
-20°C to 180°C
Nominal Pressure:
PN16
,
Body Material:
Stainless Steel (1.4408)
,
Connection Type:
Flange
,
Key Performance Capabilities:
Material Degradation Resistance: The H2406 check valve uses shot-blasted SS 1.4408 stainless steel across the primary body and internal disc components, preventing corrosive media attacks to extend operational lifespans and reduce replacement expenditures in aggressive fluid environments.
Dual Seal Containment: The H2406 wafer check valve integrates both external and internal disc FPM O-rings, ensuring rigorous fluid containment across severe thermal shifts up to +180°C to prevent hazardous pipeline leaks.
Compact Pipeline Integration: The H2406 check valve features a low profile wafer design, enabling rapid horizontal or vertical installation within restricted plant areas to minimise system footprint and accelerate maintenance procedures.
The H2406 wafer swing check valve guarantees unidirectional flow isolation for horizontal and vertical fluid pipelines requiring compact integration. The H2406 check valve accommodates nominal sizes from DN 40 to DN 300, regulates maximum operating pressures up to 16 bar, and withstands continuous media temperatures ranging from -20°C to +180°C. Safety & Compliance: Flange Standardisation: The H2406 wafer swing check valve mounts directly between flanges compliant with EN 1092 PN10/16 and ANSI 150 specifications, ensuring secure integration into established UK pipework architectures to prevent media leakage. Note: The maximum operational media temperature and pressure ranges depend strictly on the specific valve configuration and selected connection standard for the H2406 check valve.
