FLOY 316 PTFE

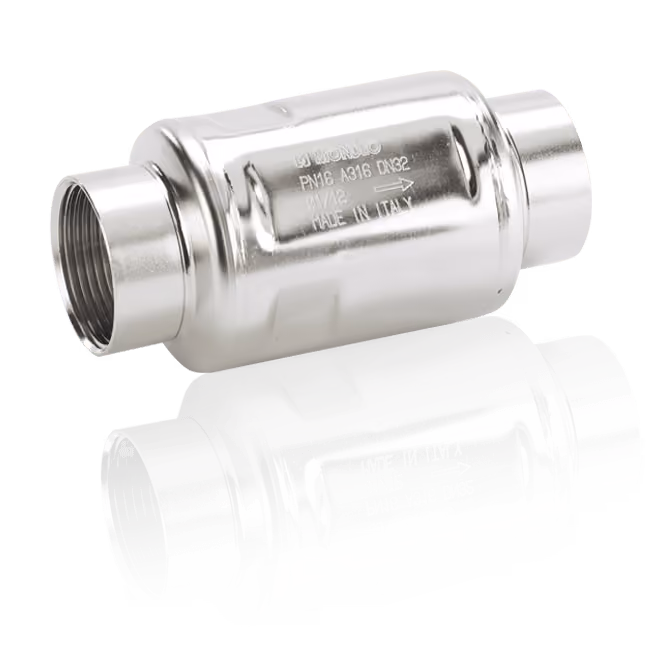

Floy Stainless Steel Swing Check Valve
Working Temperature:
-20°C to 200°C
Nominal Pressure:
PN16
,
Body Material:
Stainless Steel (1.4401)
,
Connection Type:
Threaded
,
Key Performance Capabilities:
Material Durability: The Floy swing check valve uses pressed AISI 316 stainless steel across the body and internal metallic components, preventing corrosive media degradation to extend system longevity and reduce replacement costs in demanding fluid networks.
Thermal & Chemical Resilience: The Floy swing check valve integrates a durable PTFE seal ring, preventing internal media leakage across severe thermal variations from -20°C to +200°C to eliminate unplanned maintenance downtime.
Structural Integrity: The Floy check valve features TIG welded joints manufactured without additional material alongside rigorous surface degreasing, pickling, and electropolishing, guaranteeing structural reliability under continuous 16 bar pressure loads to prevent pipeline failures.
The Floy stainless steel swing check valve guarantees unidirectional flow isolation for industrial applications requiring stringent corrosion resistance. The Floy check valve regulates operating pressures up to 16 bar, integrates pressed AISI 316 stainless steel components, and withstands continuous media temperatures ranging from -20°C to +200°C. Safety & Compliance: Connection Standards: The Floy stainless steel check valve features UNI ISO 228/1 gas female threaded ends, ensuring standardised, secure integration into existing UK pipework architectures to minimise installation time and prevent thread leakage. Note: The maximum operational media temperature and pressure ranges depend strictly on the specific valve configuration and selected connection standard for the Floy check valve.
