90030 316

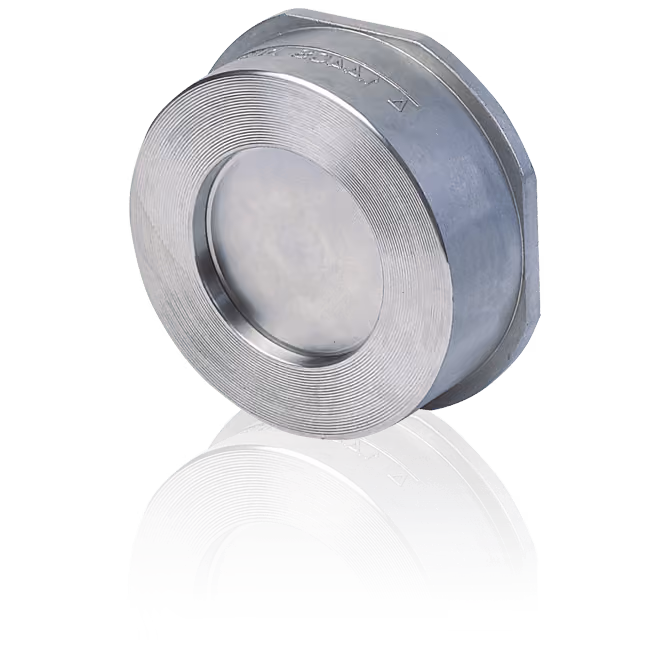

90030 AISI 316 Wafer Disc Check Valve
Working Temperature:
-20°C to 240°C
Nominal Pressure:
PN40
,
Body Material:
Stainless Steel (1.4401)
,
Connection Type:
Flange
,
Key Performance Capabilities:
Thermal Resilience: The 90030 wafer check valve integrates a robust metallic seal system, bypassing the thermal degradation limits of elastomer alternatives to guarantee secure fluid isolation across severe temperature shifts up to +240°C, thereby eliminating unplanned maintenance downtime.
Material Degradation Resistance: The 90030 disc check valve uses shot-blasted SS 1.4408 (AISI 316) stainless steel across the primary body and internal spring components, preventing corrosive media attacks to extend operational lifespans and reduce replacement expenditures in aggressive fluid environments.
Versatile Orientation: The 90030 wafer valve supports horizontal, vertical, or inclined flow installations, enabling adaptable integration into complex pipework networks to minimise system redesign costs.
The 90030 AISI 316 wafer disc check valve provides unidirectional flow isolation for industrial pipelines requiring compact flange integration. The 90030 wafer check valve accommodates nominal sizes from DN 15 to DN 200, regulates maximum operating pressures up to 40 bar, and withstands continuous media temperatures ranging from -20°C to +240°C. Safety & Compliance: Flange Standardisation: The 90030 wafer disc check valve mounts directly between flanges compliant with EN 1092 PN10/16/25/40 and ANSI 150/300 specifications, ensuring secure integration into established UK pipework architectures to prevent hazardous media leakage. Face to Face Compliance: The 90030 check valve adheres to EN 558-1 S.49 face to face dimensions, allowing engineers to standardise replacement protocols and accelerate mechanical pipeline interventions. Note: The maximum operational media pressure depends strictly on the specific nominal size configuration for the 90030 check valve, regulating 40 bar for sizes up to DN 100, and 25 bar for DN 125 through DN 200 dimensions.
