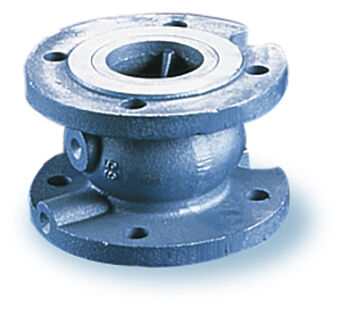

402 Drinking water Check Valve (Single Check/NRV)
Available Sizes:
Working Temperature:
-10°C to 23°C
Nominal Pressure:
PN16
,
Body Material:
Epoxy Coated Cast Iron
,
Connection Type:
Flange
,
Description
Pressure rating 16 bar (DN200, DN250, DN300 10 bar). Max temp. 100°. GJL cast iron, epoxy coated casing. 2 undrilled bosses. EPDM Seal. Stainless Steel. Type 402 Closing System DN 40 Brass, DN 50 and 65 bronze. Other DN: Cast iron with Bronze Stem. Note: DN200, DN250 and DN300 not WRAS approved.
