XYLIA2 LUG

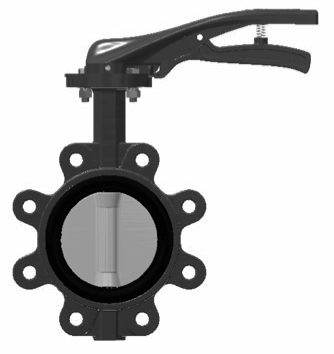

The Xylia2 compact lug configuration butterfly valve represents the latest generation of high-performance, space-saving valve solutions. Designed as the successor to the Xylia range, it combines robust construction with ease of use, making it suitable for a wide range of industrial applications. Availble with handle or worm gearbox. The valve body is manufactured from durable ductile iron (GGG40), with a choice of disc materials including stainless steel (CF8M) or epoxy-coated cast iron. An EPDM seat ensures excellent sealing performance, while each valve is fitted with a metal identification badge for full traceability. Engineered for reliability and long service life, the Xylia2 offers straightforward installation and simple operation. A built-in position indicator provides clear visual confirmation of valve status, enhancing usability in demanding environments. Key features include: Simple, user-friendly design Easy installation with excellent sealing performance High reliability and extended service life Integrated position indicator Maximum working pressure: PN16 Operating temperature range: -20°C to +120°C (peak) Manual operation is available via an epoxy-coated aluminium handle (DN50 to DN150) or a worm gearbox for larger sizes (DN50 to DN300). The valve is TB105 approved up to DN300 (on request) and is supplied with a 2-year warranty, ensuring confidence in performance and durability.
