UV4028WB

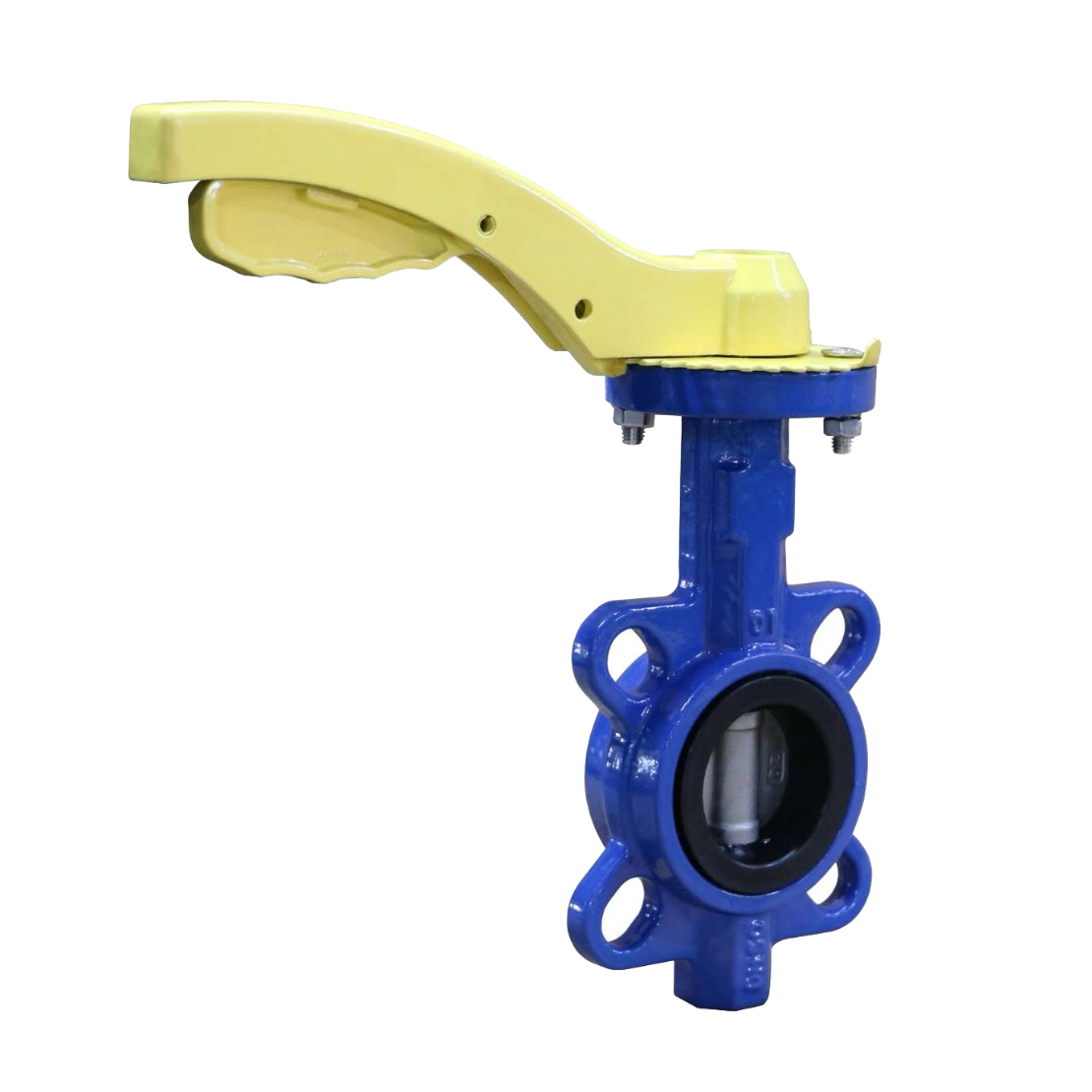

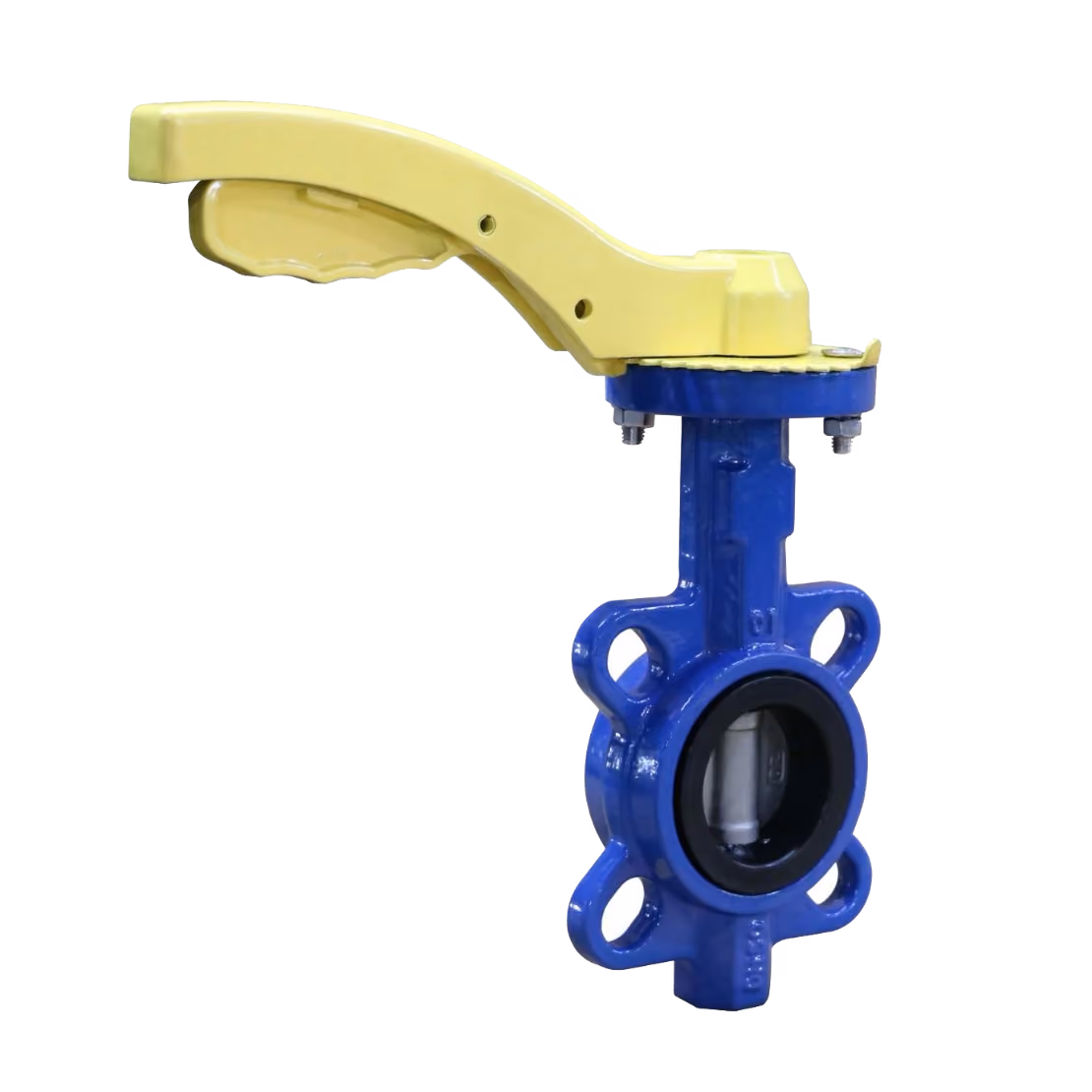

The UV Wafer Pattern Butterfly Valve (4028WB) is a durable and cost-effective solution for flow isolation in industrial and general-purpose applications. Designed for installation between flanges, this wafer-style valve provides a compact and lightweight option without compromising on performance. Manufactured with a ductile iron body and stainless steel disc, the valve offers excellent strength and corrosion resistance. It is fitted with an NBR liner, making it particularly suitable for applications involving oils, hydrocarbons and other compatible media where EPDM is not suitable. With a maximum working pressure of 16 bar, the valve is designed to suit BS 10 Table D/E, PN6/10/16 and ANSI150 flanges, ensuring compatibility with a wide range of systems and installations. The NBR seat provides a working temperature range of 0°C to +80°C, making this valve ideal for lower temperature industrial processes and fluid handling applications. Available in sizes from DN40 up to DN600, the valve can be supplied with lever or gearbox operation depending on size, allowing for easy operation across different system requirements. Held in stock at Ultravalve and competitively priced, the 4028WB offers a reliable and economical solution for projects requiring fast delivery and dependable performance.
