BRC0000F2

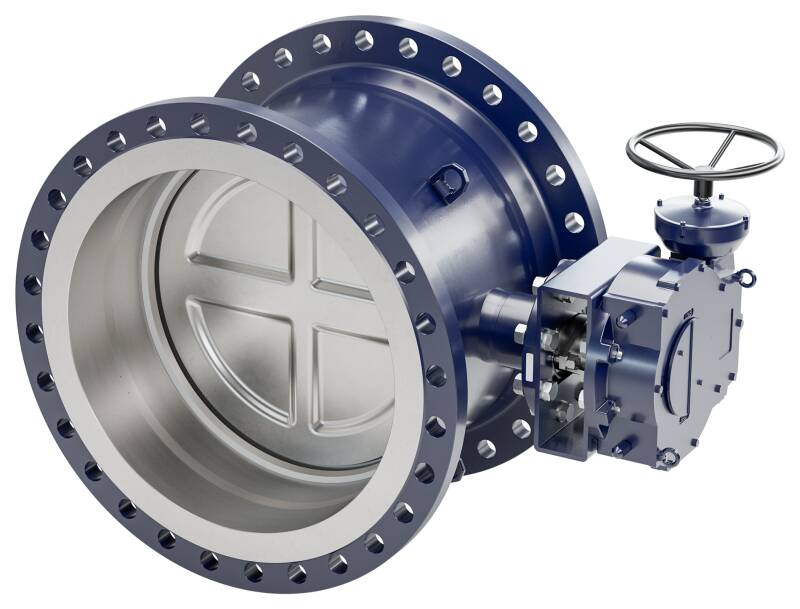

The Vexve BRC0000F2 is a reduced-bore control and shut-off butterfly valve for high differential-pressure large-diameter pipelines. Available from DN 900 to DN 1000 at PN 25, it uses an alloy steel body (P355NL1/P355QH1, 1.0566/1.0571), a cast stainless steel disc (GX5CrNiMo19-11-2, 1.4408), and a hardened chrome-plated seat (1.4542 + HCr). The PTFE and AISI 316 net bearing supports precise manual gear actuation. Connecting flange-to-flange, this variant is rated to Δp = 25 bar with Class A or B leakage per EN 12266-1. The temperature range of -20°C to +250°C covers district heating networks and demanding industrial process pipelines.
