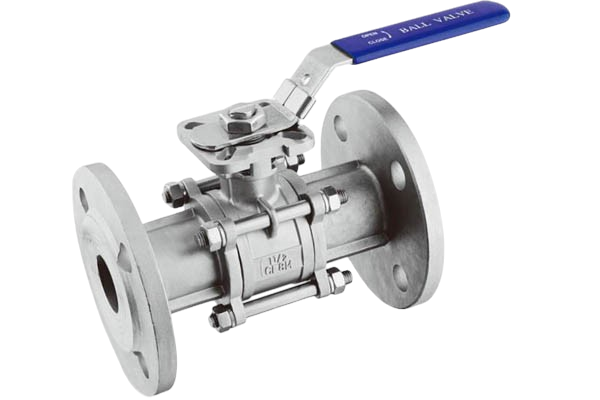

UVQF301F
3PC DIN Flanged Ball Valve
Actuation:
Handle
Body Material:
Stainless Steel
Bore Type:
Full Bore
Connection Type:
Flange
,
Nominal Pressure:
PN40
,
Working Temperature:
-20°C to 180°C
The UVQF301F is a 3PC DIN flanged ball valve designed to provide reliable isolation together with the serviceability advantages of a three-piece valve construction.
A full port flow path helps minimise restriction through the valve, while the blow-out-proof stem provides additional operational safety. Investment cast construction and stainless steel internal components provide durability for industrial fluid handling applications.
The three-piece body arrangement allows the centre section of the valve to be accessed more readily during maintenance, making the UVQF301F particularly suited to applications where servicing and long-term maintainability are important. The valve is available with PN16 and PN40 ratings depending on size and features DIN flanged ends. Inspection and testing are specified to DIN 3230/3 and EN 12266.
