UVQF203MD

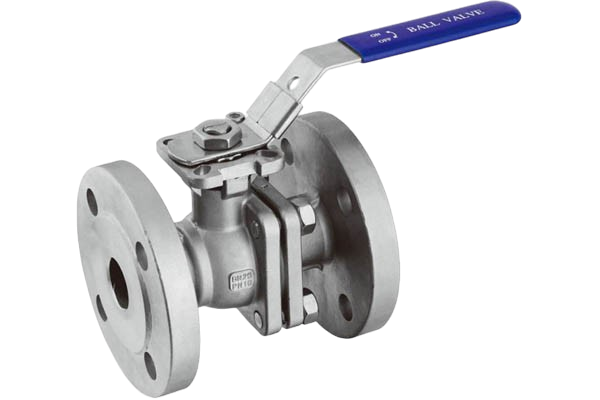

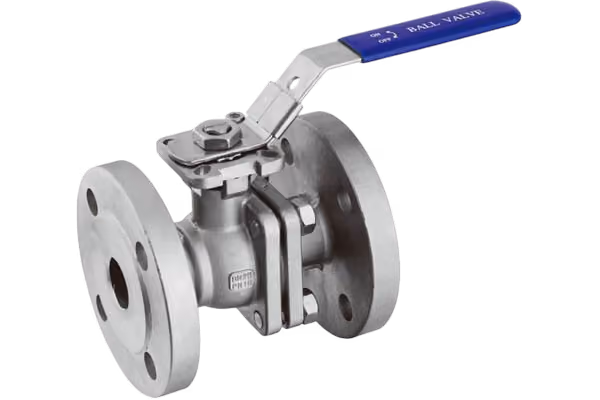

2PC DIN Flanged Ball Valve with Direct Mounting Pad
Actuation:
Handle
Body Material:
Stainless Steel
Bore Type:
Full Bore
Connection Type:
Flange
,
Working Temperature:
-20°C to 180°C
The UVQF203MD is a large-bore 2PC DIN flanged ball valve designed for industrial flow isolation and automated valve applications.
The valve incorporates an ISO 5211 direct mounting pad, enabling compatible pneumatic or electric actuators to be fitted for remote or automated operation. Its full port construction helps maintain flow capacity through the pipeline, while investment cast body and cap construction provides a durable solution for demanding industrial installations.
Stainless steel construction is combined with PTFE/RPTFE seats, a blow-out-proof stem and Viton sealing components. The catalogue specifies a PN16 pressure rating, with DIN flange connections and sizes covering larger diameter pipework applications. Working Temperature: -25°C to +180°C
