UVQF203F
2PC DIN Flanged Ball Valve
Actuation:
Handle
Body Material:
Stainless Steel
Bore Type:
Full Bore
Connection Type:
Flange
,
Nominal Pressure:
PN40
,
Working Temperature:
-20°C to 180°C

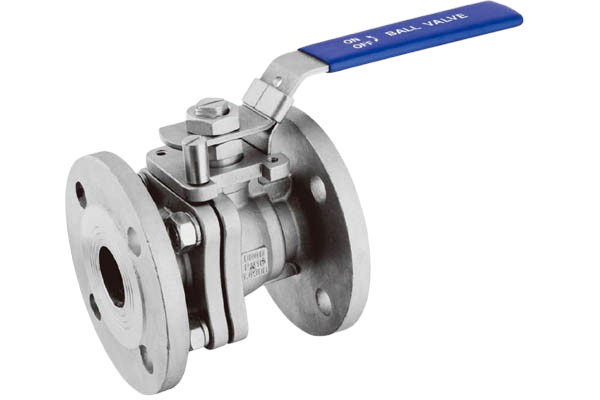

The UVQF203F is a 2PC DIN flanged ball valve designed to provide robust and dependable isolation across a variety of industrial fluid handling applications.
Its full port design provides an unrestricted flow path through the valve, helping reduce pressure losses in the pipeline. The valve also incorporates a blow-out-proof stem and optional locking device, supporting safe and controlled operation.
Manufactured using investment casting, the UVQF203F is available with stainless steel body and internal components and uses PTFE/RPTFE seating materials. The valve is offered with PN16 and PN40 pressure ratings depending on size and features DIN flange connections. Inspection and testing are specified to DIN 3230/3 and EN 12266.
