UVQF201M
2PC ANSI Flanged Ball Valve with Direct Mounting Pad
Actuation:
Handle
Body Material:
Stainless Steel
Bore Type:
Full Bore
Connection Type:
Flange
,
Working Temperature:
-20°C to 180°C

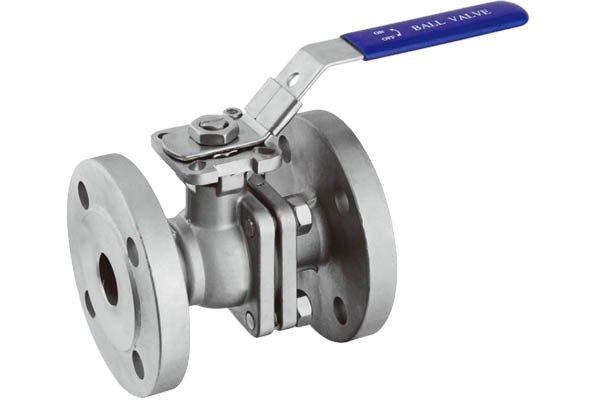

The UVQF201M is a 2PC ANSI flanged ball valve designed to provide reliable shut-off alongside straightforward valve automation.
An integrated ISO 5211 direct mounting pad allows pneumatic or electric actuators to be mounted efficiently, making the valve particularly suitable for automated process and industrial applications.
The valve incorporates a full port design, helping to minimise restriction through the valve, alongside a blow-out-proof stem for enhanced operational safety. Investment cast construction and stainless steel internal components provide a robust solution for demanding industrial service. The UVQF201M uses ANSI B16.5 Class 150 flange connections and features PTFE/RPTFE seating and sealing materials. Inspection and testing are carried out in accordance with API 598.
