UVQF103MF

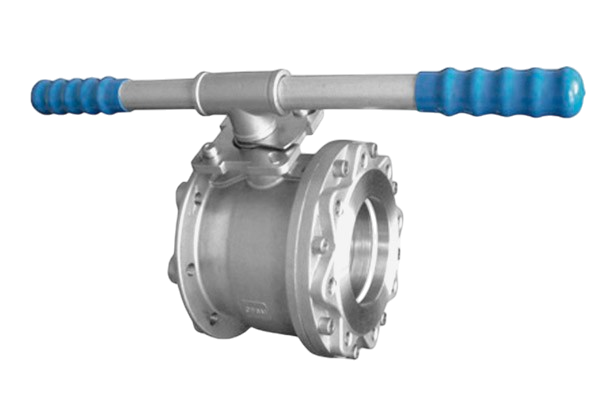

1PC Wafer Flanged Ball Valve with ISO 5211 Mounting Pad
Actuation:
Handle
Body Material:
Stainless Steel
Bore Type:
Full Bore
Connection Type:
Flange
,
Working Temperature:
-20°C to 180°C
The UVQF103MF is a larger-bore 1PC wafer flanged ball valve designed for industrial applications requiring a compact valve construction combined with dependable flow isolation.
The valve features an ISO 5211 direct mounting pad, allowing straightforward integration with valve actuation equipment. Its full port construction helps maintain flow capacity through the pipeline, while the design incorporates a blow-out-proof stem for additional safety.
The UVQF103MF uses a trunnion-supported ball design and is available in larger nominal sizes, making it particularly suited to applications where a compact wafer valve is required on larger diameter pipework. Construction includes CF8M/CF8 body materials, stainless steel internal components and PTFE/RPTFE sealing materials.
