UV4504
Full Bore Manifold Ball Valve WRAS approved
Actuation:
Handle
Body Material:
Brass
Bore Type:
Full Bore
Connection Type:
Threaded
,
Nominal Pressure:
PN40
,

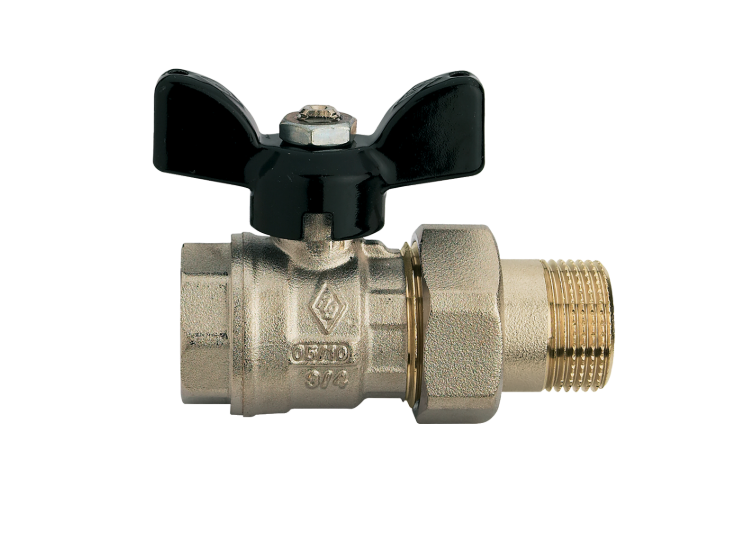

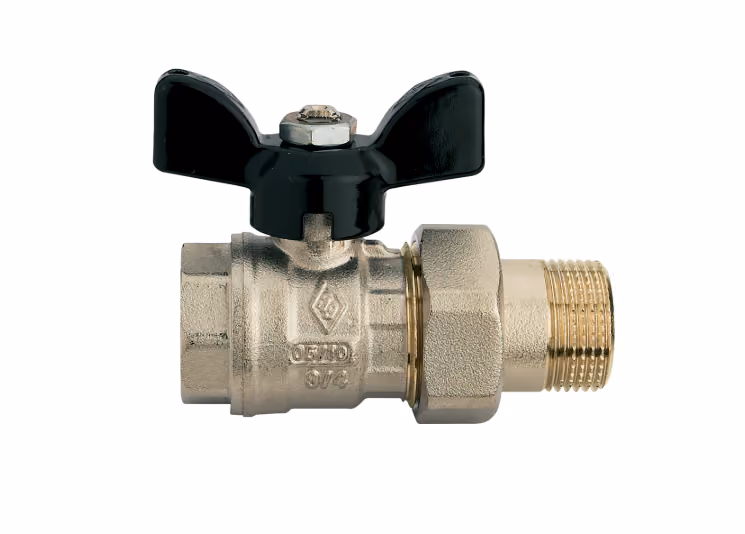

The 4504 UNI-SFER is a full bore ball valve designed for reliable isolation and straightforward connection to manifold systems.
Featuring a female threaded connection and male union tail, the valve provides a practical solution for installations where a removable union connection is required. Its full bore construction maintains a clear flow path through the valve, helping to minimise restriction and pressure loss within the system.
The 4504 is supplied with an aluminium T-handle for convenient manual operation, with selected larger sizes available with a reversible aluminium lever. Rated to PN40, the valve is suitable for operating temperatures from -20°C to +130°C, making it a versatile solution for a range of heating, plumbing and fluid distribution applications. A range of connection combinations is available from 1/2" up to 2", allowing the valve to be matched to different manifold and pipework requirements.
