UV104IMF
UV140 IMF Stainless Steel Threaded Ball Valve
Body Material:
Stainless Steel
Bore Type:
Full Bore
Nominal Pressure:
PN25
,
Working Temperature:
-20°C to 150°C
Key features:
- Three-piece stainless steel construction
- Full-bore design
- BSP threaded ends
- PTFE seats
- ISO 5211 direct actuator mounting
- Suitable for pneumatic or electric actuation
- Locking device
- Sizes from DN8 to DN100
- 1000 WOG pressure rating
- CE marked

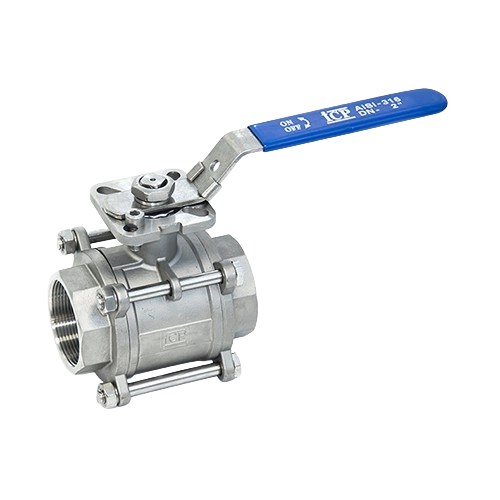

The UV140 IMF is a robust three-piece stainless steel ball valve designed for reliable isolation and flow control across a wide range of industrial applications. Its full-bore design helps minimise flow restriction through the valve, while BSP threaded ends provide a practical connection for threaded pipework systems. PTFE seats provide dependable sealing, and the valve is available in sizes from 1/4" (DN8) through to 4" (DN100). The UV140 IMF also incorporates an ISO 5211 mounting connection, allowing pneumatic or electric actuators to be fitted where automated valve operation is required. A locking device is included for secure manual operation. Constructed from stainless steel, the valve is suited to applications requiring durability and corrosion resistance. It is rated at 1000 WOG, with PN63/PN25 pressure ratings depending on size, and carries CE.
