Model 441
Nickel Plated Brass Full Bore Ball Valve BSPP (Model 441)
Body Material:
Nickel Plated Brass
Bore Type:
Full Bore
Connection Type:
Threaded
,
Nominal Pressure:
PN40
,
Working Temperature:
-10°C to 120°C
Tags:
WRAS Approved
,
The Model 441 WRAS Approved Ball Valve is a high-quality, full bore valve designed for reliable flow control in potable water, HVAC and general industrial systems.
Manufactured from nickel plated brass, it offers excellent corrosion resistance and long service life, making it a dependable choice for a wide range of applications. Designed with BSPP threaded connections, this valve provides easy installation and secure sealing in standard pipe systems.
The full bore design ensures minimal pressure drop and maximum flow efficiency, making it ideal for applications where unrestricted flow is required. WRAS approved, the Model 441 is suitable for use in drinking water systems, meeting strict regulatory standards for safety and compliance.

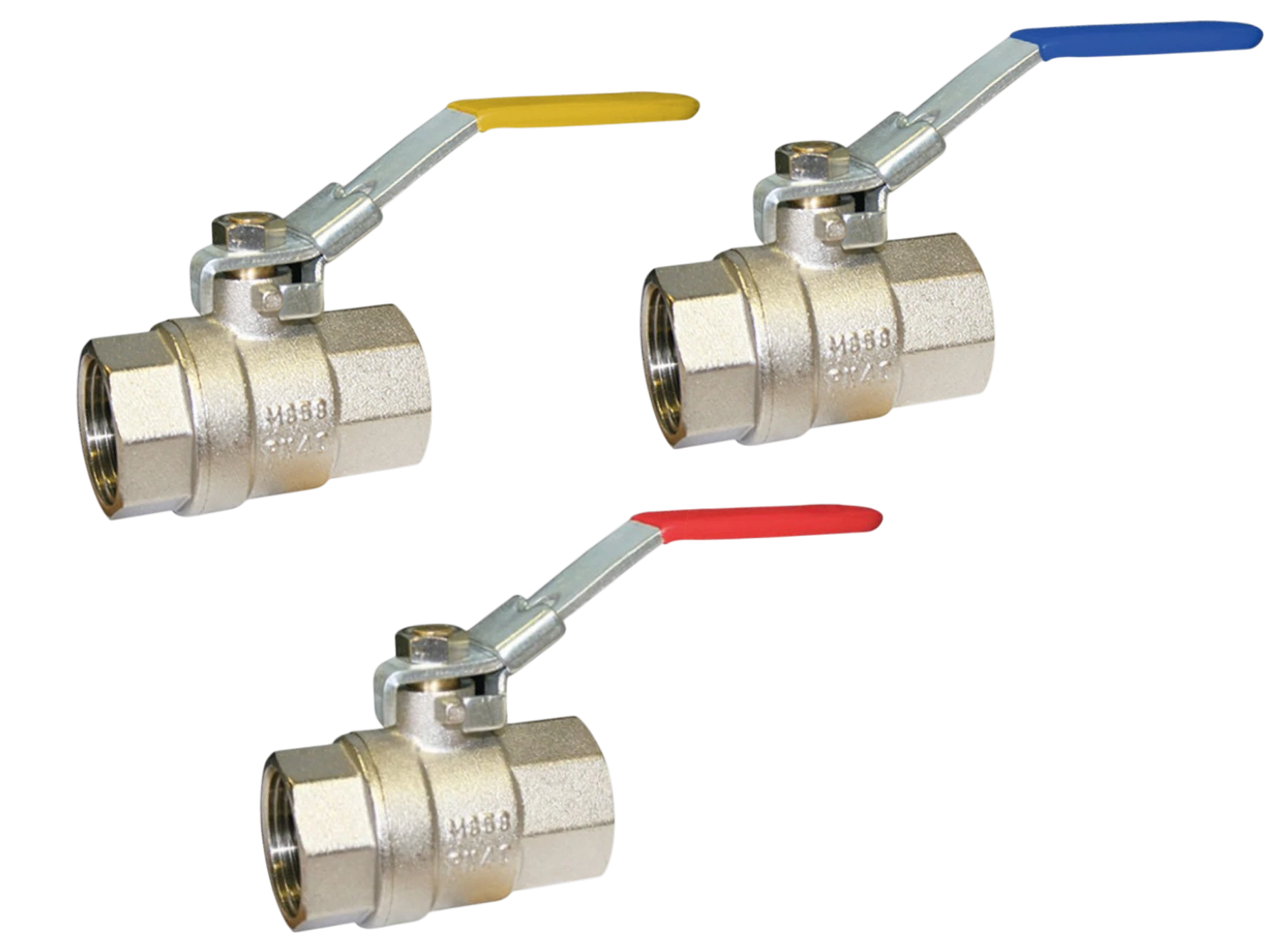

It is also available with different lever handle options (red, yellow or blue), allowing for easy identification and application-specific use. With a working temperature range of -10°C to +120°C, the valve is suitable for both hot and cold water applications. It is rated PN40 for sizes from 1/4” to 2”, and PN25 for larger sizes from 2½” to 4”, providing flexibility across different system requirements. Available in sizes from 1/4” to 4” (DN8 to DN100), the Model 441 offers a versatile and cost-effective solution for both domestic and commercial installations. A wing handle version is also available on request for alternative operation. Held in stock at Ultravalve and competitively priced, this valve delivers reliable performance with fast availability for your projects.
