GEMÜ B54

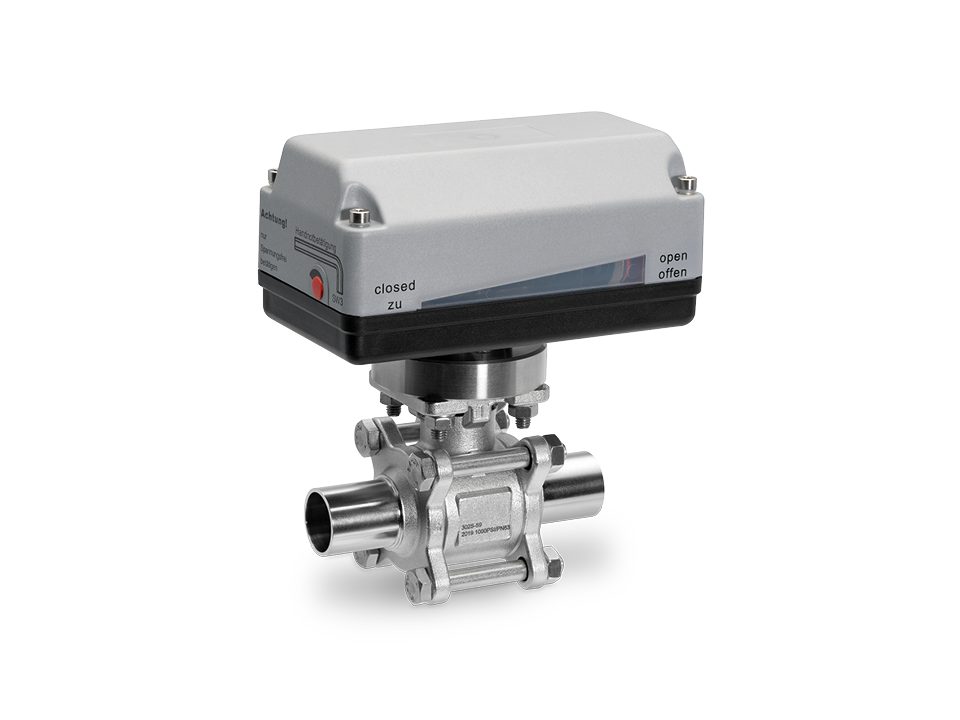

The GEMÜ B54 3 piece metal 2/2-way motorised ball valve provides automated hygienic flow isolation for pharmaceutical and biotechnology systems. The GEMÜ B54 accommodates nominal sizes from DN 8 to DN 100, regulates operating pressures up to 63 bar, and withstands extreme media temperatures ranging from -10°C to 220°C. Key Performance Capabilities: High Purity Media Integrity: The GEMÜ B54 integrates a 1.4435 stainless steel alloy body featuring a checked delta ferrite content below 3%, preventing media contamination and lowering long term maintenance costs in critical sterile steam generation lines. Precision Automated Regulation: The GEMÜ B54 incorporates electric actuation delivering operating times from 4 to 58 seconds across 12V to 240V supply voltages, securing precise mechanical flow control to eliminate unplanned process downtime. Zero Dead-Leg Sealing: The GEMÜ B54 features an optionally cavity-filled PTFE seal mechanism, minimising internal dead spaces to prevent bacterial accumulation and secure complete system decontamination during stringent CIP/SIP sterilisation cycles. Safety & Compliance: Explosive & Ingress Security: The GEMÜ B54 integrates an antistatic unit, holds ATEX conformity, and achieves IP65 to IP68 protection classes, preventing electrostatic ignition and water ingress to guarantee facility safety within volatile industrial zones. Pharmaceutical & Food Grade Compliance: The GEMÜ B54 achieves FDA, USP Class VI, and Regulation (EC) No. 1935/2004 conformities, ensuring plant engineers can standardise one motorised sanitary valve across highly regulated food processing and biotechnology networks. Note: The maximum operational media temperature and pressure ranges depend strictly on the specific ball valve configuration and selected connection standard for the GEMÜ B54.
