776400

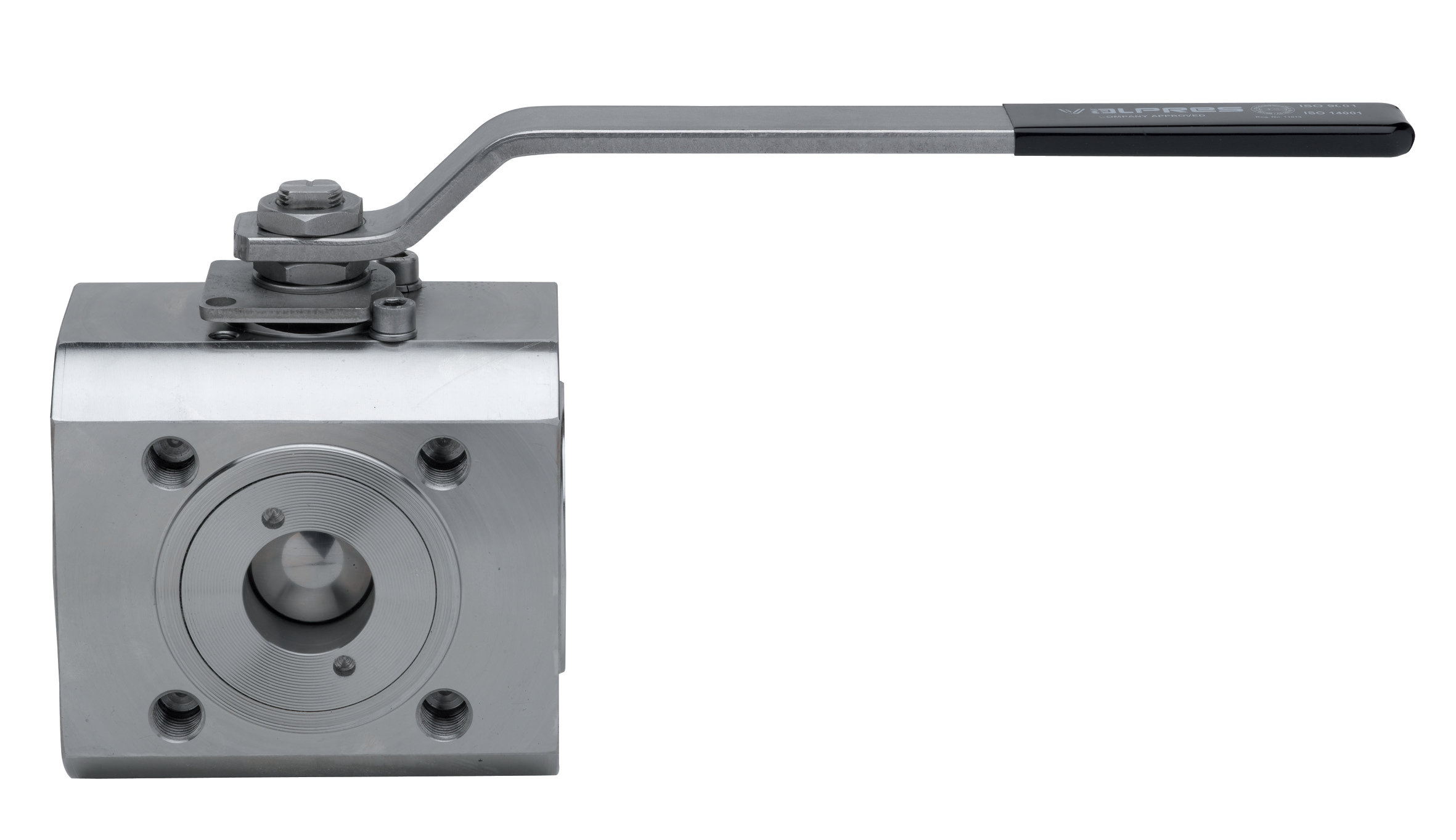

Series 776400 Stainless Steel Full Bore 3 Way T-Port Flanged Ball Valve Ultravalve supplies the Series 776400 stainless steel full bore three way flanged PN16 ball valve for dependable T-port flow mixing and diversion in compatible industrial systems. Manufactured with an A479-TP316 stainless steel body, A479-TP316 / A351-CF8M multi-port ball and four PTFE seats, the Series 776400 is designed for compatible process, plant maintenance and general fluid handling applications when correctly specified and installed. Dependable T-Port Flow Control for Process Systems Ultravalve’s Midlands based warehouse offers a wide range of three way flanged ball valves from stock, subject to configuration and current availability. Designed to support maintenance projects, flow routing and pipework mixing duties, these valves help provide replacement options for industrial systems requiring full bore multi-port control. T-Port Flow Control: The T-port configuration supports multi-directional flow routing, including suitable mixing or diversion duties where the system design allows. Full Bore 3 Way Design: The full bore construction helps support higher flow capacity than reduced bore alternatives in compatible process systems. Four Seat Construction: Uses four PTFE ball seats with PTFE body seats, FKM O-rings and a Graphoil stem seat for dependable internal sealing. Robust Stainless Steel Construction: Manufactured with A479-TP316 body and stem materials, A479-TP316 / 316L end connection and A479-TP316 / A351-CF8M ball. Defined Pressure & Size Range: Available from DN15 to DN100, with a PN16 pressure rating across the size range. DN80 and DN100 versions differ from the standard product drawing. Temperature, Vacuum & Certifications: The stainless steel temperature range is -20°C to +160°C, with vacuum capability as 10⁻³ torr. Certification availability includes TUV and ATEX, subject to selected configuration and verification at quotation. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 776400 stainless steel 3 way T-port flanged ball valve is available to order, with delivery options confirmed at quotation. Contact our team for technical advice, current availability or to request a quote.
