776000

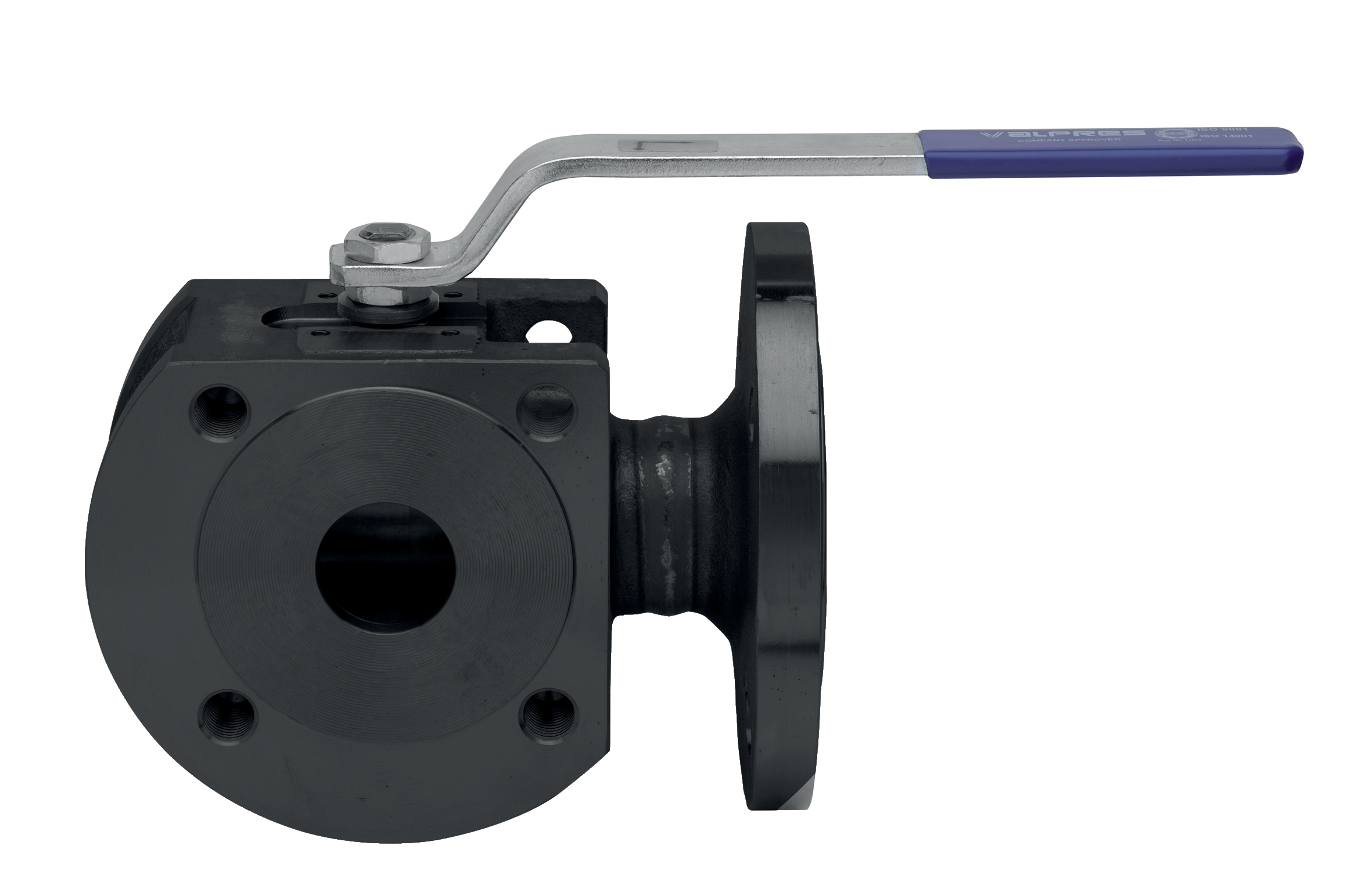

Series 776000 Carbon Steel Three Way L-Port Flanged Ball Valve Ultravalve supplies the Series 776000 carbon steel 3 way flanged PN16 diverter ball valve for dependable L-port flow diversion in compatible industrial systems. Manufactured with a blued ASTM A105 carbon steel body and end connection, an A351-CF8 / A479-TP304 multi-port ball and two PTFE seats, the Series 776000 is designed for compatible process, plant maintenance and general fluid handling applications when correctly specified and installed. Dependable L-Port Flow Diversion for Process Systems Ultravalve’s Midlands based warehouse offers a wide range of three way flanged ball valves from stock, subject to configuration and current availability. Designed to support maintenance projects and controlled pipework diversion, these valves help provide replacement options for industrial systems requiring reduced bore multi-port flow routing. L-Port Flow Diversion: The L-port configuration supports controlled flow diversion between compatible pipeline branches. Reduced Bore Design: The reduced bore construction provides compact 3 way flow control for compatible process systems. Two Seat Construction: Uses a 2 seat PTFE design with FKM O-rings, PTFE thrust washer and PTFE stem seat for dependable internal sealing. Robust Carbon Steel Construction: Manufactured with ASTM A105 body and end connection materials, an A351-CF8 / A479-TP304 ball and A479-TP304 stem. Defined Pressure & Size Range: Available from DN15 to DN150, with a PN16 pressure rating across the size range. Temperature & Vacuum Capability: The carbon steel temperature range is -10°C to +160°C, with vacuum capability as 10⁻³ torr. Automation & Certification Guidance: For automation requirements, consult us before specification. Certification availability includes TUV and ATEX on request, subject to selected configuration and verification at quotation. With over 30 years’ experience and an ISO 9001:2015 certified quality management system, Ultravalve provides dependable valve solutions for UK industry. The Series 776000 carbon steel 3 way L-port flanged ball valve is available to order, with delivery options confirmed at quotation. Contact our team for technical advice, current availability or to request a quote.
